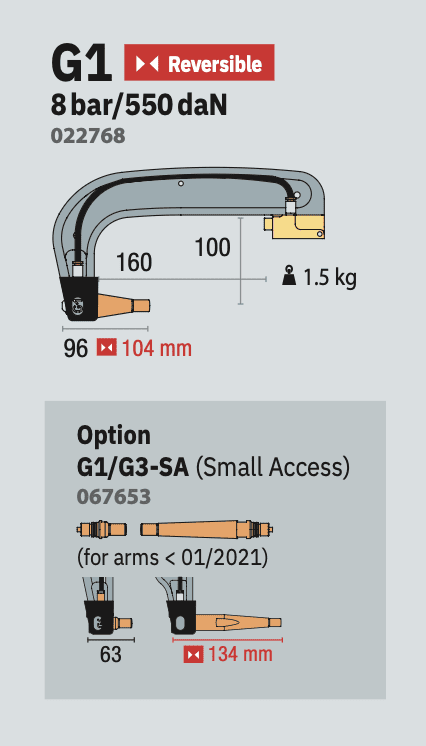

Core GYS ArmStandard Arm
G1 Arm
The standard GYS arm and the starting point for everyday structural spot-welding work. It covers a broad range of common repair access and should be part of every core arm package.
The right reach changes the repair.

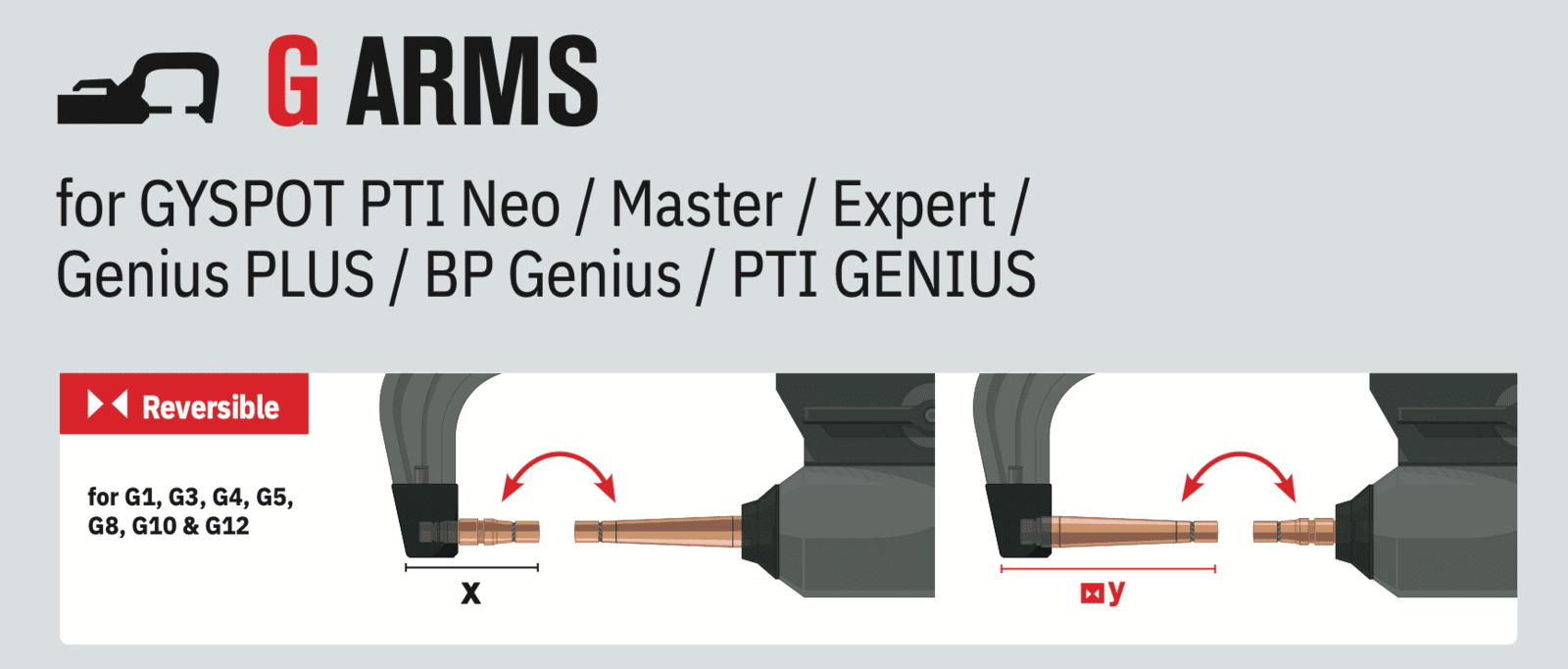

The complete GYS G-Arm range for structural spot welding — thirteen geometries, from the standard G1 to the 1,000 mm G12. Compare arm shapes, buy the arm, shop its consumables and download its manual, all from one page.
- Fits PTI Genius Plus & Genius
- Arm-specific consumables in stock
- Manuals for every arm
Build the arm package around the work your shop actually performs.
Not every repair gives the technician the same approach angle. The GYS arm system lets you expand beyond the standard setup and select the geometry that best fits the panel, the clearance and the repair position.
Explore the G-Arm range
Select an arm by shape or application.
Choose an arm to jump to its specifications, purchasing options, consumables and manual.

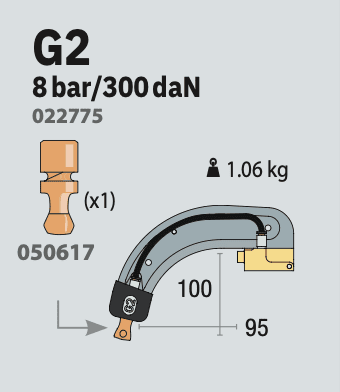

Wheelhouse AccessWheelhouse Arm
G2 Arm
Designed specifically for wheelhouse repairs and other areas where the panel geometry makes a standard arm difficult to position. Its shape gives the technician a cleaner approach in confined wheelhouse locations.

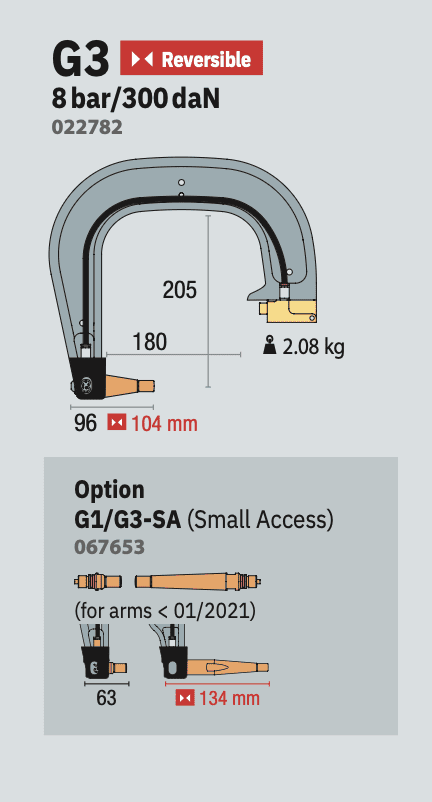

Compact Reach200 mm Arm
G3 Arm
The 200 mm G-Arm provides a compact step up from the standard arm, giving the technician additional reach without moving into the much larger rear-body-panel arm sizes.
Rear Body Panel Reach500 mm Rear Body Panel Arm

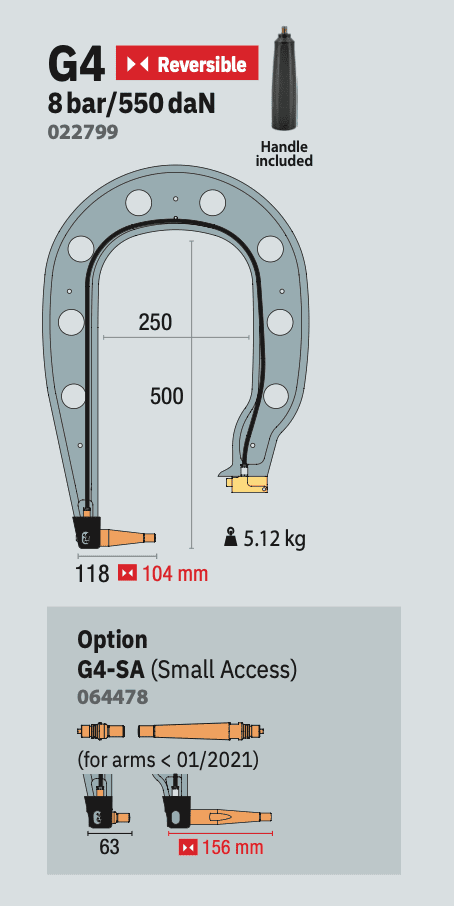

G4 Arm
A 500 mm arm built for rear body panels and other repairs that require substantial reach into the vehicle structure. This is one of the key arms for reaching around deeper panel assemblies.
Extended Rear Body Reach600 mm Extended Arm

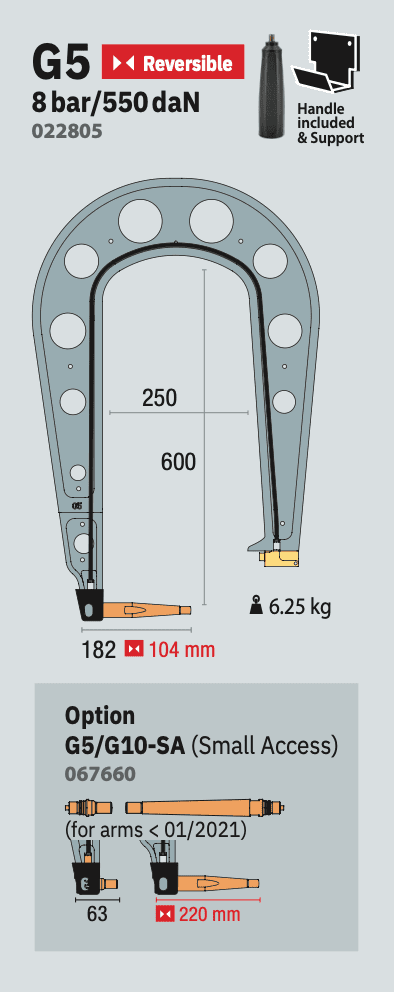

G5 Arm
Similar in purpose to the G4, but extended another 100 mm. At 600 mm, the G5 provides the additional depth needed for larger rear-body-panel repairs and other deep structural access points.
One of Our Most Popular Options46 mm Tight-Access Arm

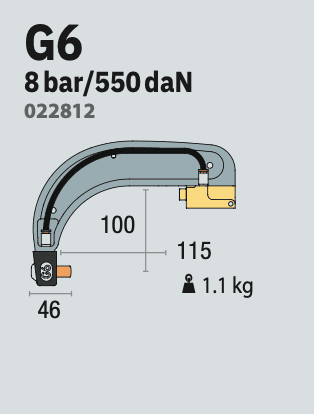

G6 Arm
One of our best-selling optional arms because of its exceptionally tight access. With only 46 mm from end to end on the arm side, the G6 reaches areas that larger arm bodies simply cannot enter.
Pincher-Style AccessTight-Access Pincher

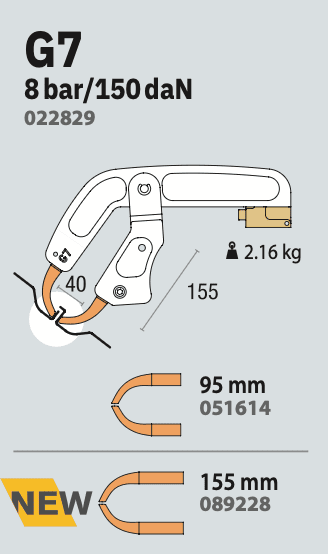

G7 Arm
A pincher-style arm similar in concept to other C-to-X adapters. This one is designed for extremely tight repair areas and is particularly useful around radiator supports and other narrow structural locations.

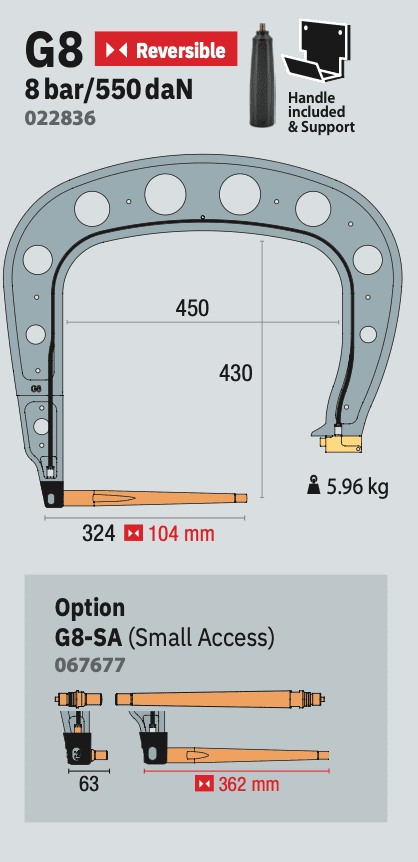

Deep Interior ReachUltra-Wide, Ultra-Light Arm
G8 Arm
An ultra-wide, ultra-light arm with outstanding reach for deep repair scenarios. It is especially valuable when a rear body panel extends far into the vehicle and the technician needs broad access without excessive arm weight.

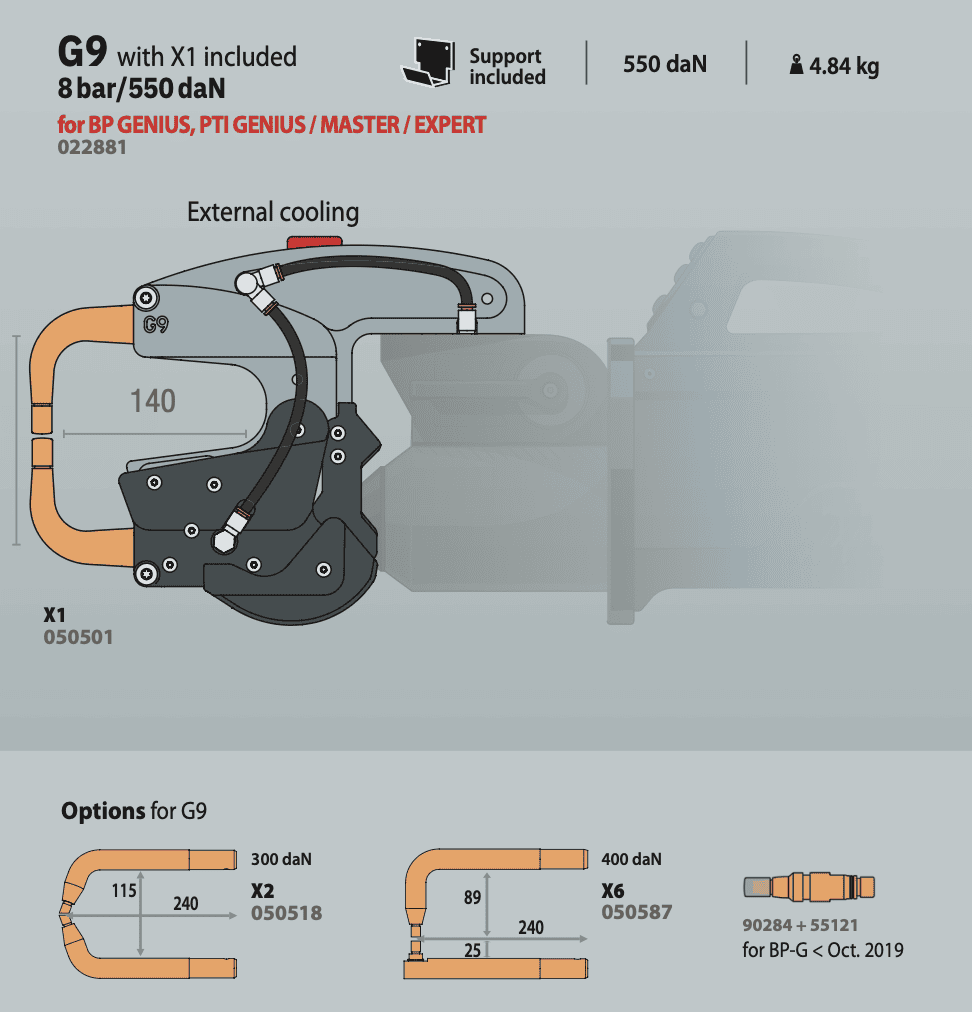

High-Pressure Adapter SystemStandard C-to-X Adapter

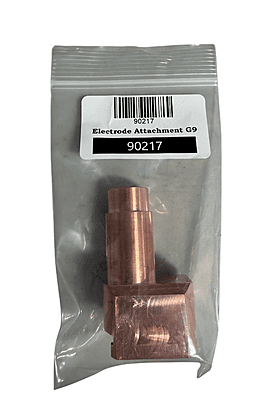

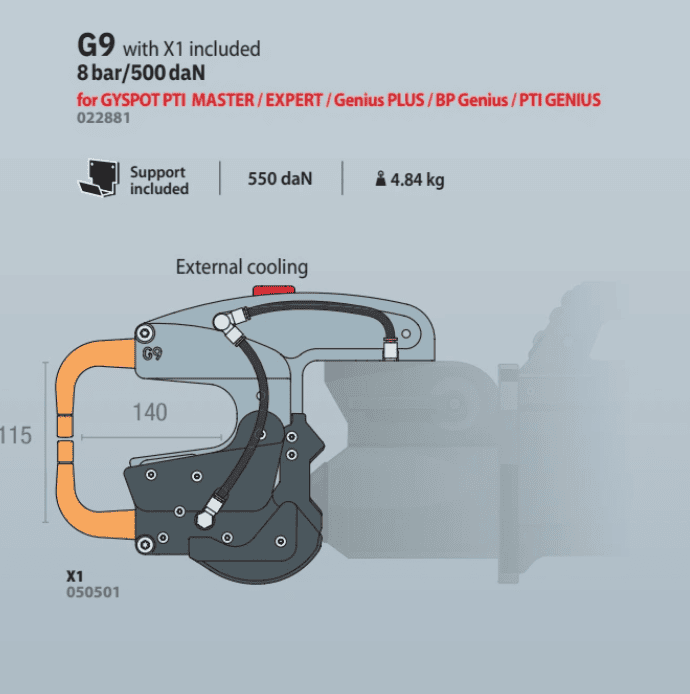

G9 Arm
Similar in application to the G7, but with substantially greater squeeze pressure and a wider range of electrode combinations. The G9 is the standard GYS C-to-X adapter for versatile, high-pressure access.
Lightweight Extended ReachUltra-Light 600 mm Arm
G10 Arm
An ultra-lightweight 600 mm arm that delivers functionality similar to the G5 with less weight at the end of the welding cable. It is built for deep access while reducing technician fatigue.
NEO-Style ConnectionThreaded C-to-X Adapter

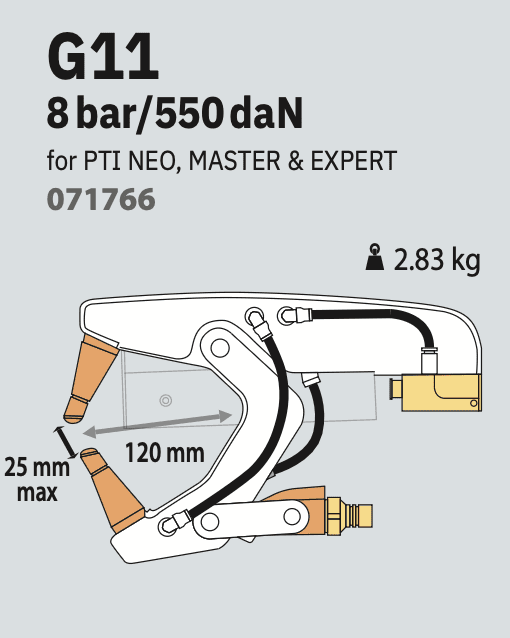

G11 Arm
Functionally similar to the G9, but designed for systems such as the GYS NEO that use a threaded arm connection. It provides the same C-to-X-style access in a configuration suited to threaded mounting.

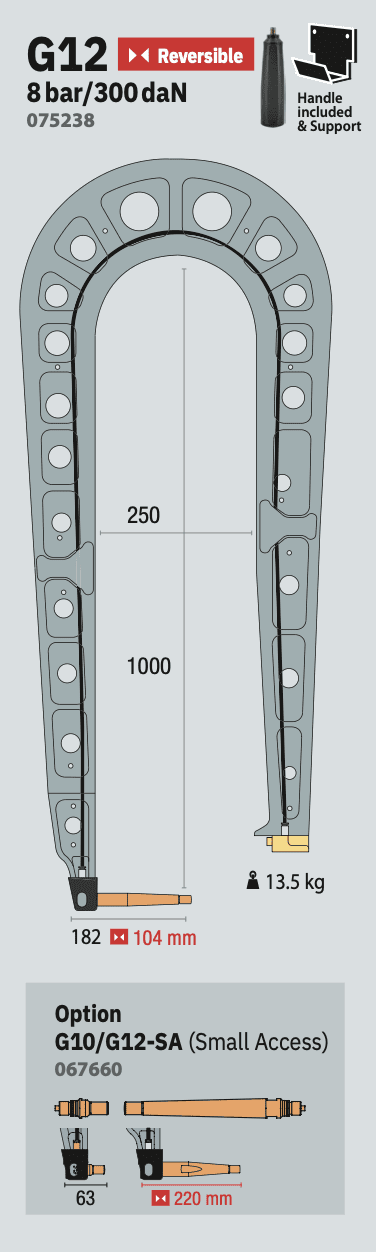

Extreme Reach Arm1,000 mm / Nearly 40 in.
G12 Arm
At 1,000 mm—nearly 40 inches—the G12 delivers exceptional reach for major structural work. We have used it for floors, roofs, transmission-tunnel tubs, and other repairs that are simply unreachable with conventional arms.
Mid-Range Opening315 mm Height / 210 mm Opening

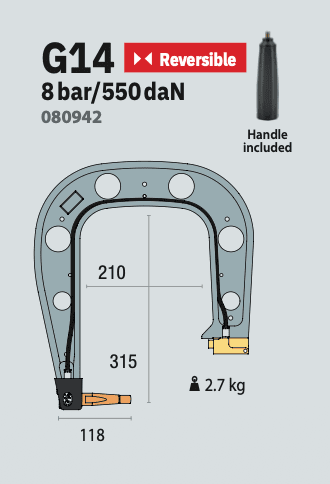

G14 Arm
With 315 mm of height and a 210 mm opening, the G14 provides 100 mm more opening than the G3. It effectively fills the gap between the G3 and G4 for repairs requiring more clearance without moving to a full 500 mm arm.
Keep every arm production-ready.
Shop replacement electrodes, caps, maintenance items and arm-specific components from the consumables link on each arm above.
Shop spot-welding consumablesBuying a complete welding system?
Pair your G-Arm package with a compatible GYS spot welder and build a complete structural-repair setup for your shop.
Request equipment guidance
