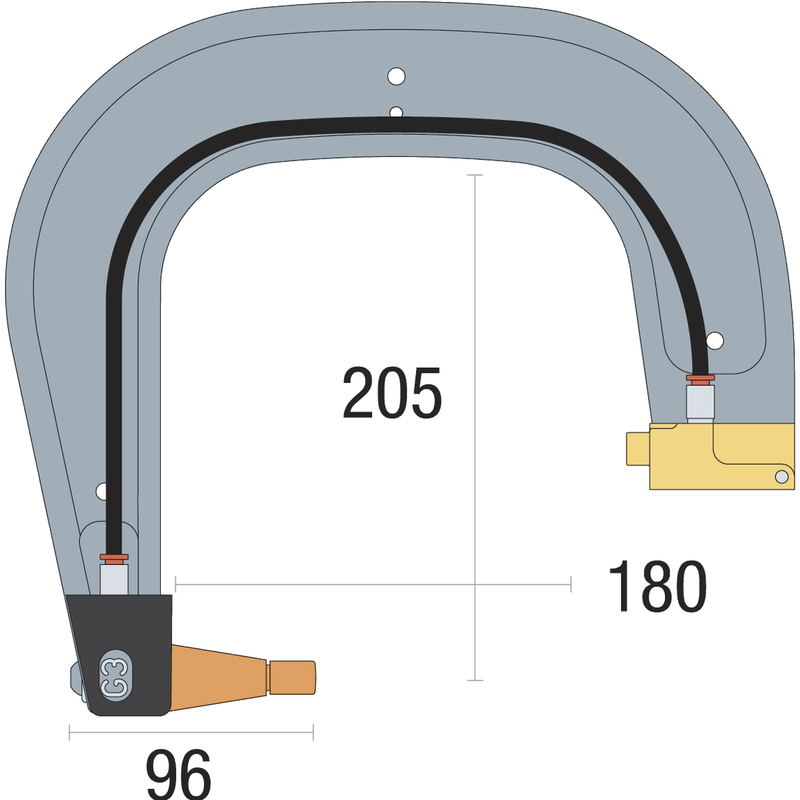

GYS G3 insulated spot welder arm, dimension drawing

GYS 022782 G3 Intermediate Spot Welding Arm, 205 x 180 mm | For PTI Genius and NEO

Intermediate Reach G-Arm

The 205 mm × 180 mm intermediate replacement arm for GYSPOT PTI Genius, NEO, Chief MI300T, Volkswagen VAS 821 101A, and BMW-approved units. The perfect "Goldilocks" size for quarter glass openings, frame rails, and short rear body panels where standard arms are too small and deep-reach arms are too clumsy.

Shop G3 Arm Consumables View G3 Arm Manual View Universal Data Sheet
$1,199.00
Item Category
Accessory
Manufacturer MSRP
$1,323.03
List Price
$1,199.00
Member Discount
Resolved member-pricing discount %, written from the CRM Member_Pricing rule engine. Storefront reads this via /zos-api/products.
5.0
Compare Chart Data
{"v":1,"d":"2026-10-05","rows":[["ADVCRS",1200,"same GYS part","022782-GYS"],["GYS USA",1200,"same GYS part","022782"]]}
AI Product Summary
{"v":1,"faq":[["Which welders does the G3 arm fit?","PTI Genius (BMW C7503362, VAS 821 101A), PTI Genius Plus (VAS 821 101B), NEO, Master and Evolution. Also compatible with Chief MI300T / MI300i and BMW-approved PTI welders."],["What size is it?","205 mm reach by 180 mm height."],["When do I need a G3 instead of the standard arm?","When the G1 runs out of clearance but the job is not as deep as a full rear body panel."],["What jobs is it for?","Quarter glass openings, frame rails, intermediate structural joints and short rear body panels, like those on BMWs."],["When should the arm be replaced?","Cooling lines and connection plates can be swapped on their own. Replace the full arm if it starts to lose alignment or the internal cooling channels degrade."]]}
