Cordless Self-Piercing Rivet Systems for Modern Collision Repair
Hand Cannon rivet guns give repair professionals a shop-ready cordless solution for self-piercing rivets, solid rivets, rivet removal, flow-form rivets, calibration punching, flattening, and pin-and-collar applications.
- Cordless 18V platform
- Quick-change arms
- Post-style application dies
- Consumables supported by CRTE
Choose the Hand Cannon Rivet Gun That Fits Your Shop
Hand Cannon keeps the lineup focused: one standard cordless rivet gun for everyday repair capability, and one digital force control model for shops that want more force, more feedback, and more precise control.

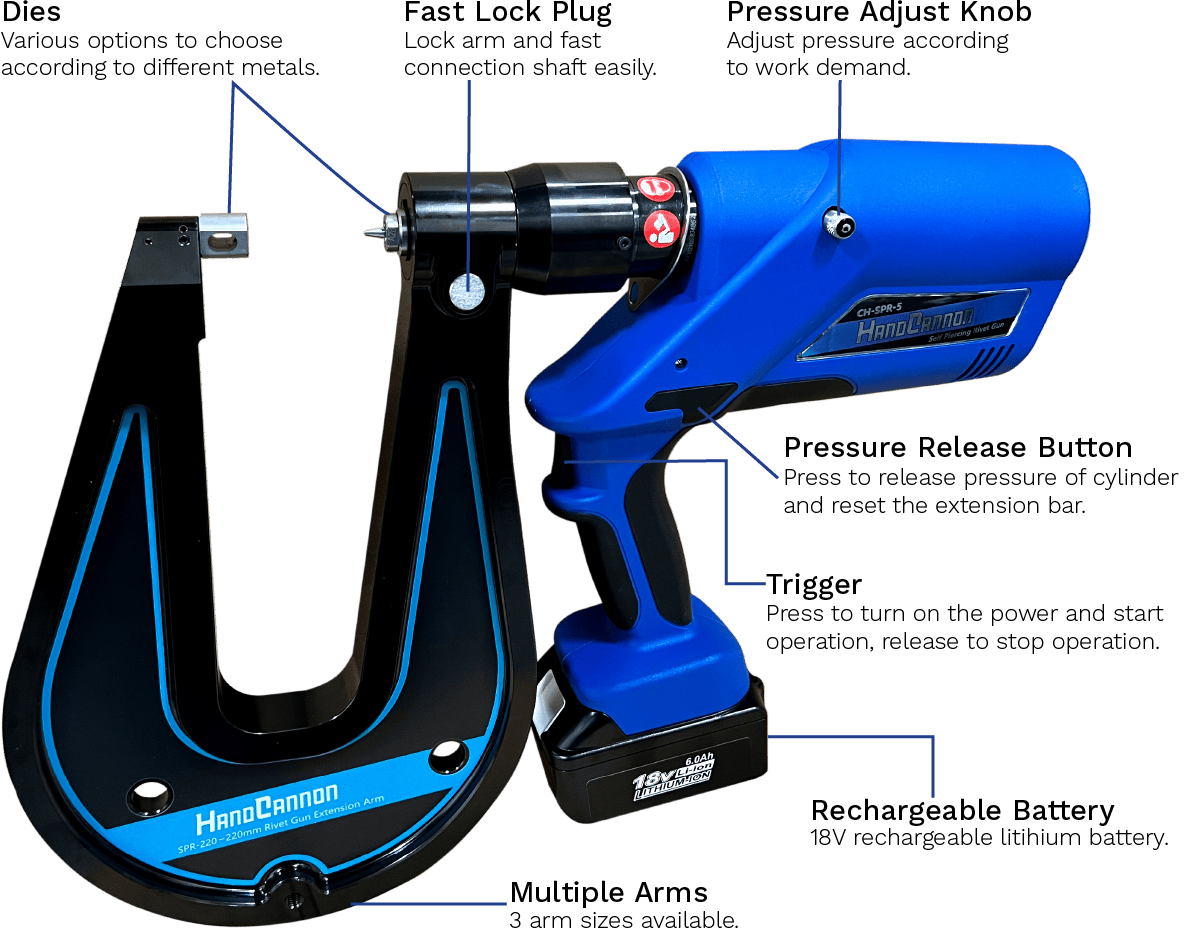

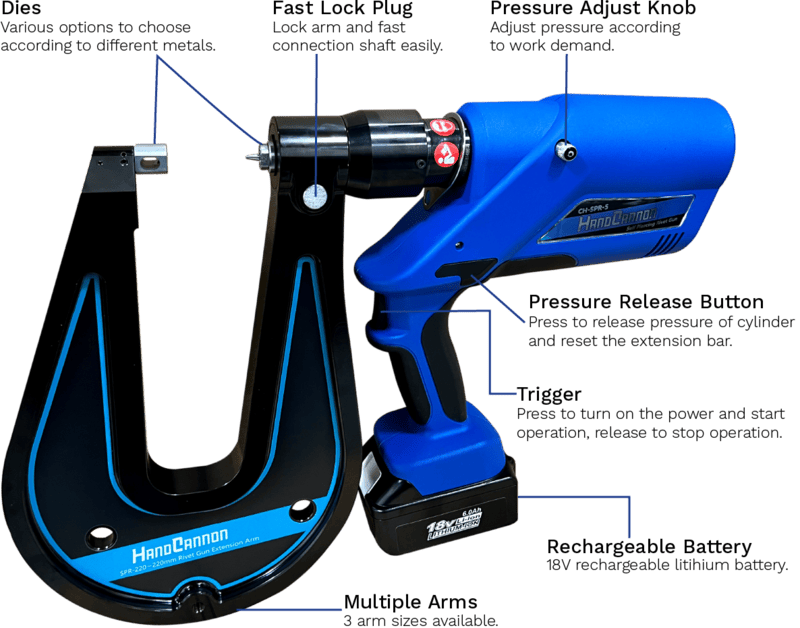

Hand Cannon CH-SPR-5
The CH-SPR-5 is the practical, shop-ready cordless riveting solution for technicians who want fast operation, quick arm changes, magnetic dies, post-style application dies, and up to 55 kN of riveting force.

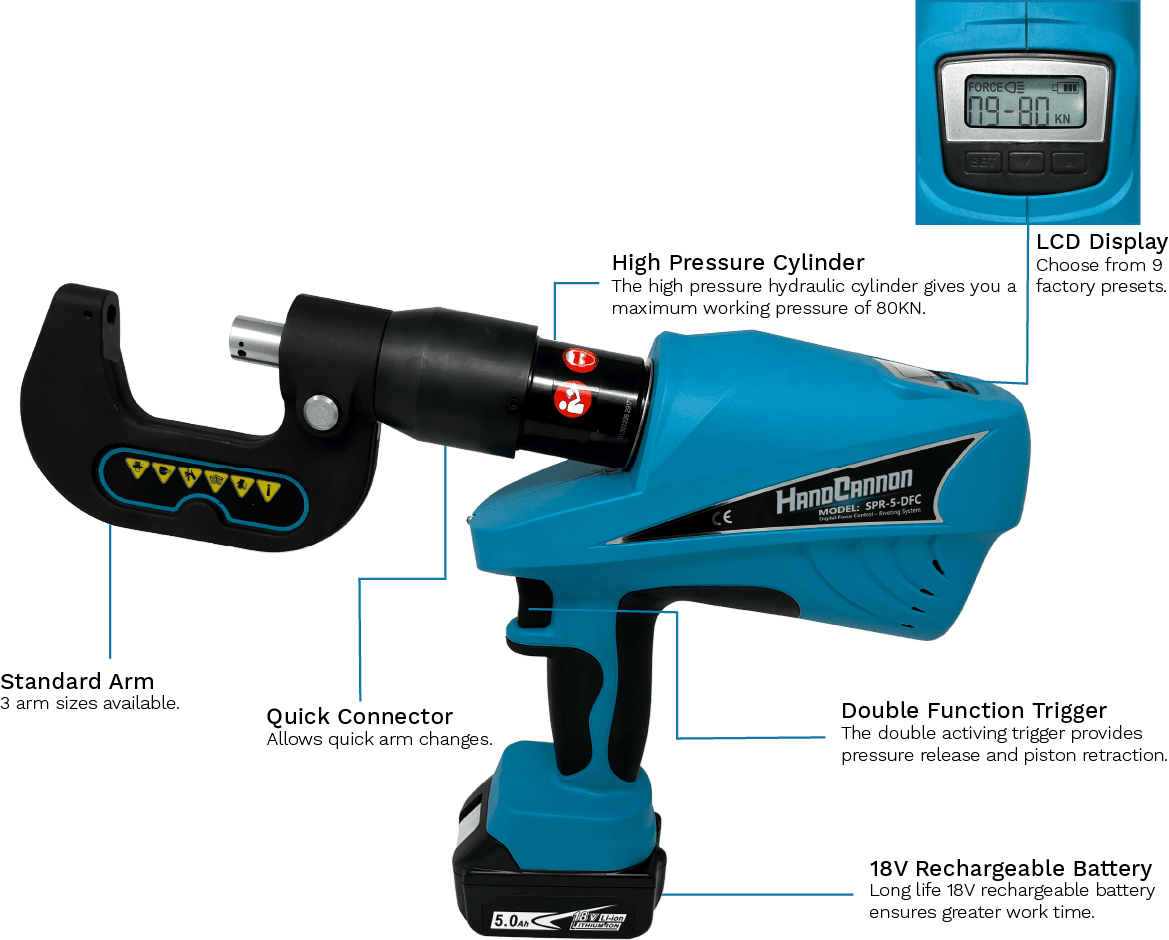

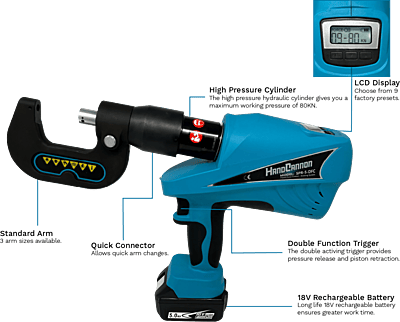

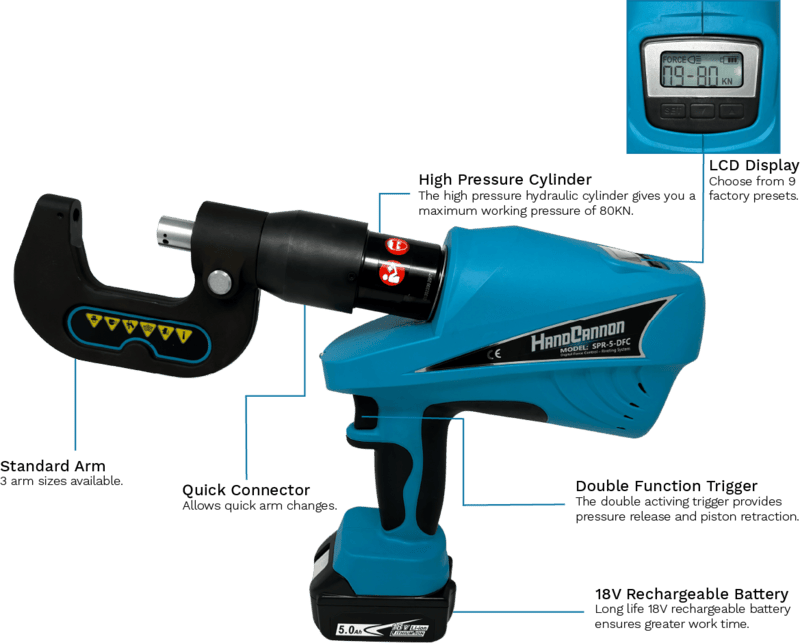

Hand Cannon SPR-5-DFC
The SPR-5-DFC adds digital force control, LCD feedback, 9 adjustable preset pressure modes, LED work lighting, computerized pressure protection, and up to 80 kN of riveting force.
Built around the real joining operations collision shops face.
Modern body repair requires more than one joining method. Hand Cannon systems are designed around a family of dies and arms that allow technicians to handle common rivet operations without dragging hoses across the shop or relying on a bulky external hydraulic station.
- Self-piercing rivet installation
- Solid rivet installation
- Rivet removal applications
- Flow-form rivet work
- Calibration punching and flattening functions
- Pin-and-collar style applications
Common Hand Cannon Applications
From collision repair to controlled assembly work, Hand Cannon gives technicians a focused tool platform for rivet installation, removal, and related panel joining operations.
Self-Piercing Rivets
Designed for SPR installation where modern repair procedures call for controlled fastening without pre-drilling.
Solid Rivets
Supports solid rivet applications using the correct die configuration for the repair or assembly operation.
Rivet Removal
Use the appropriate removal die setup to support clean rivet removal during panel replacement and repair work.
Flow-Form Rivets
Supports countersunk FFR rivet planting applications with the correct die configuration.
Calibration Punching
Die configurations are available for punching and calibration-related operations on supported applications.
Flattening
Flattening die setups help technicians complete additional joining and finishing operations with the same tool family.
CH-SPR-5 vs. SPR-5-DFC
Both Hand Cannon guns share the core cordless platform, quick arm changes, magnetic dies, and included die kit. The SPR-5-DFC is the premium digital model with more force, more screen feedback, and more control.
| Feature / Item | Benefit | CH-SPR-5 | SPR-5-DFC |
|---|---|---|---|
| Cordless click-in battery | No hoses to run to a separate machine and less downtime changing batteries. | ✓ | ✓ |
| Advanced cycle detection & alarm | Helps prevent a rivet operation when battery power is too low. | ✓ | ✓ |
| Magnetic dies | Fast die loading and easier user operation during SPR work. | ✓ | ✓ |
| Post-style application dies | Threadless die posts attach to the arms for long service life. | ✓ | ✓ |
| Pause operation during cycle | Allows the technician to stop during a cycle, adjust the work area, and continue. | ✓ | ✓ |
| Quick connector arm change | Change arms by removing the pin, sliding on the new arm, and replacing the pin. | ✓ | ✓ |
| Pressure adjustment | SPR-5 uses a manual pressure adjustment knob. SPR-5-DFC uses digital pressure adjustment buttons. | Manual knob | Digital buttons |
| Large digital LCD screen | Displays status information and allows force adjustment through the digital interface. | — | ✓ |
| Maximum force | Higher force capability helps meet more demanding bonding and riveting specifications. | Up to 55 kN | Up to 80 kN |
| Advanced double-function trigger | Stop-and-go trigger control helps improve technician accuracy. | — | ✓ |
| LED work light | Illuminates the work area at the front of the gun. | — | ✓ |
| Real-time pressure display | Shows current pressure during the operation and achieved pressure after the cycle. | — | ✓ |
| Battery level display | Displays remaining battery life on the digital screen. | — | ✓ |
| 9 adjustable preset modes | Allows commonly used pressure settings to be stored and adjusted for repeatable operations. | — | ✓ |
| Computerized pressure protection | Internal processor monitors pressure changes in real time during the repair process. | — | ✓ |
| SPR-40 / 42mm arm | Small standard arm for Hand Cannon rivet guns. | Included | Included |

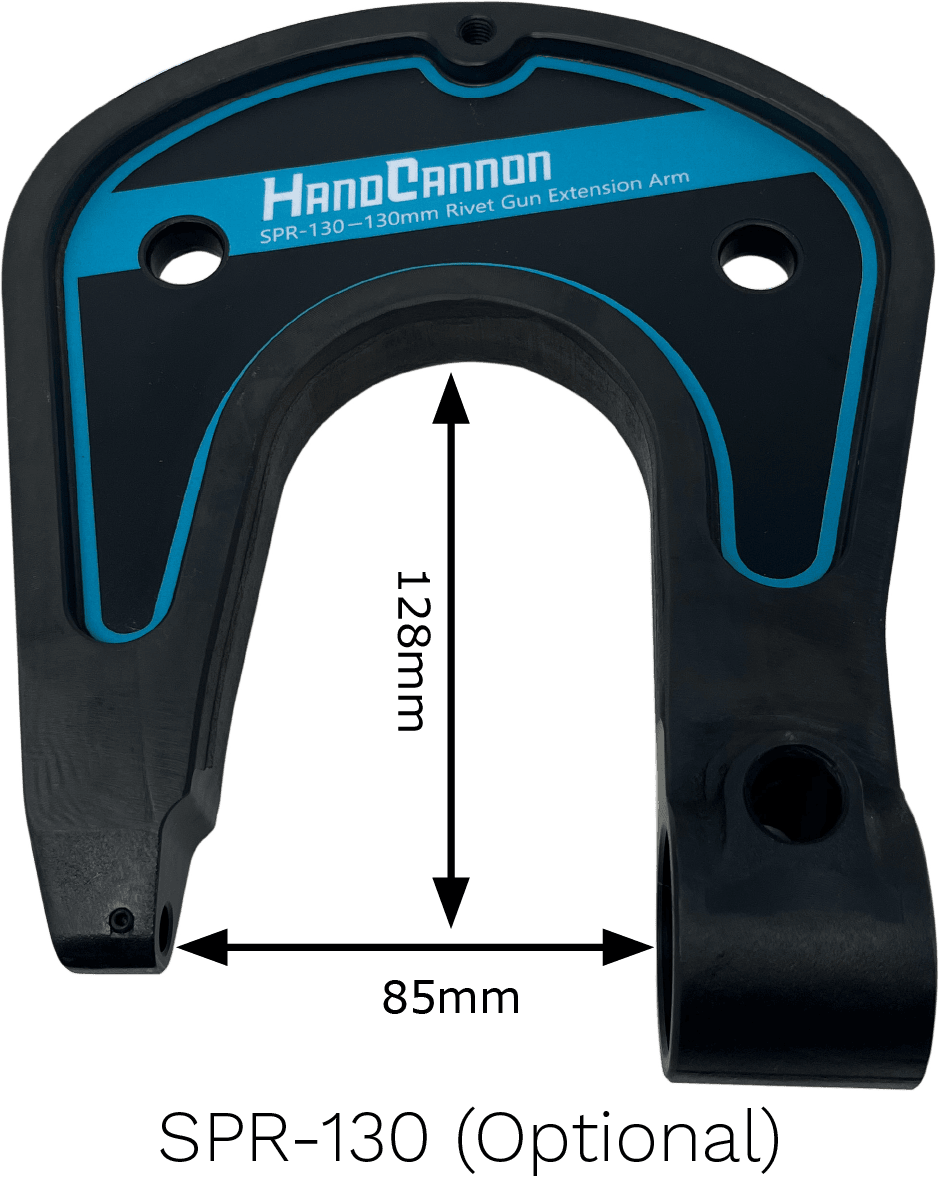

| SPR-130 / 128mm extension arm | Medium extension arm for added reach. | Optional | Optional |
| SPR-220 / 222mm extension arm | Large extension arm for deeper access requirements. | Optional | Optional |
| Standard rivet die kit | Dies for self-piercing, solid, flattening, and flow-form rivet operations. | Included | Included |
| Battery charger | 18V 4Ah lithium-ion battery charging support. | Included | Included |
| Included batteries | SPR-5 includes one battery. SPR-5-DFC includes two batteries. | One 18V battery | Two 18V batteries |
| Shoulder strap | Improves control and weight distribution during operation. | Included | Included |
Consumables are shared across the Hand Cannon lineup.
Shop rivets, dies, arms, and accessories for both Hand Cannon SPR-5 systems from the CRTE riveting collection.
Why Buy Hand Cannon from CRTE?
Rivet guns are not just another tool on the wall. Shops need to understand the force capability, die setup, arm reach, consumables, and the difference between a standard cordless system and a digital force control system.
- Help choosing between SPR-5 and SPR-5-DFC
- Consumables and accessory guidance
- Setup and usage direction
- Support from people who understand collision repair equipment
When to Choose the SPR-5-DFC
Choose the SPR-5-DFC when your shop wants more force, more feedback, and more repeatable control from the rivet gun itself.
- Up to 80 kN of riveting force
- Digital LCD screen feedback
- 9 adjustable preset pressure modes
- Real-time pressure value display
- Computerized pressure protection
Hand Cannon Resources
Review the brochures, compare features, and access support material before choosing the right rivet gun for your shop.
CH-SPR-5 Brochure
Review the standard Hand Cannon cordless SPR-5 system, features, arms, and included kit details.
SPR-5-DFC Brochure
Review the digital force control rivet gun with LCD display, 80 kN force, and premium control features.
SPR-5-DFC Manual
Access setup, operation, safety, pressure adjustment, screen indicators, and maintenance information.
Riveting Collection
Shop the shared Hand Cannon rivets, dies, arms, and consumables collection for both rivet guns.
Need help choosing between SPR-5 and SPR-5-DFC?
Tell CRTE what your shop repairs, which OEM procedures you are trying to support, and whether you need a standard cordless rivet gun or the upgraded digital force control platform.
Hand Cannon Rivet GunsCompact lineup. Serious riveting capability.
Whether you choose the CH-SPR-5 or the upgraded SPR-5-DFC, Hand Cannon gives your shop a cordless riveting platform backed by CRTE product guidance, consumables support, and real-world collision repair equipment experience.
