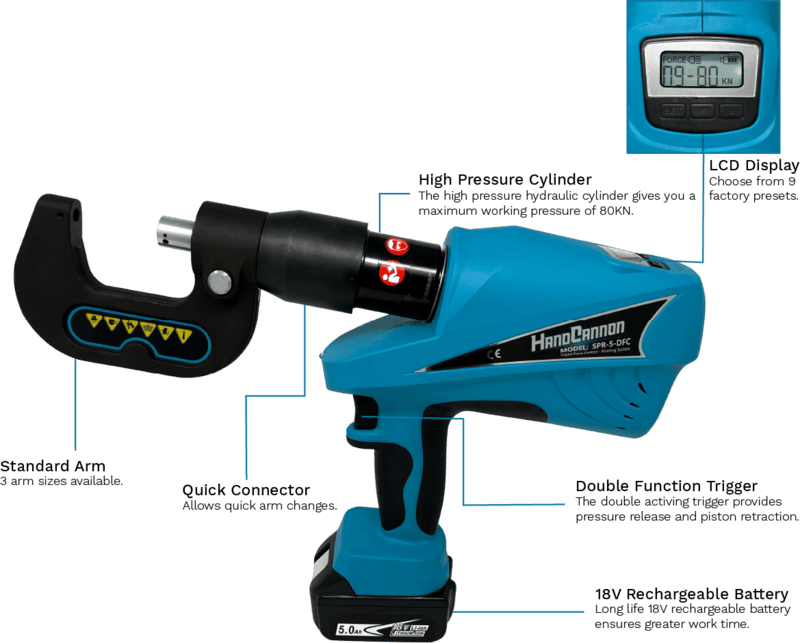

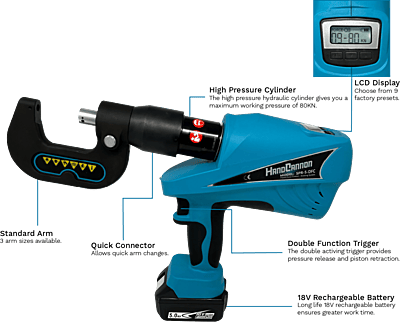

Hand Cannon SPR-5-DFC Digital Force Control Self-Piercing Rivet Gun System, 80 kN, 18V | For Aluminum and Steel Repair
Battery-powered rivet gun with digital force control for aluminum and steel collision repair. Sets and removes self-piercing rivets, sets solid and flow-form rivets, flattens, and drives pin-and-collar fasteners — pick the force on a screen, watch it in real time, and recall it as a preset.

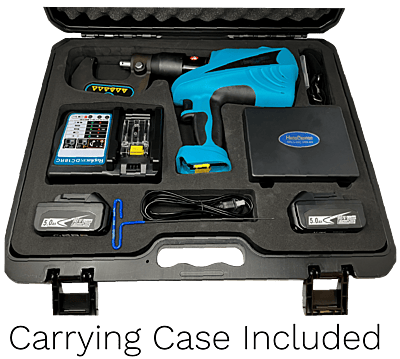

In the box: gun, 40 mm arm, die kit in toolbox, two batteries, charger, shoulder strap and carrying case. Sold and supported by Innovative Solutions CRTE — demo, training and parts from one desk.
Choose Quantity
|
80 kN Max output force | 9 Preset modes | 2 Batteries included | ~1 hr Charge time |
Why Shops Choose It Repeatable, screen-verified riveting force on every pull.The SPR-5-DFC is built for shops that want digital control and documentation of riveting force, with push-button selection, real-time readout, preset recall, and computerized protection against over-pressure.
| Included Kit Core equipment included with the SPR-5-DFC.The SPR-5-DFC package includes the main cordless digital rivet gun and the standard items needed to support common collision repair riveting applications.
|
Built for the Repair Floor Cordless freedom with digital precision.The battery-powered design allows technicians to work around vehicles, structural components, quarter panels, pillars, and difficult access areas without managing an air hose or separate hydraulic power unit — while the digital screen confirms the correct force is being applied on every rivet. |  |
Riveting and Repair Applications
The SPR-5-DFC supports a wide range of collision repair riveting, removal, forming, and panel-preparation operations. Always use the correct die configuration, pressure setting, arm, and current OEM repair procedure.
 Self-Piercing RivetsSupports controlled SPR installation where the repair procedure calls for panel fastening without conventional pre-drilling. |  Solid RivetsInstall supported solid rivets using the proper punch, die, pressure setting, material stack, and repair procedure. |  Rivet RemovalSupports controlled rivet removal using the correct male and female die combination for the rivet and repair area. |
 Flow-Form RivetsSupports flow-form and countersunk FFR rivet applications when paired with the correct dies and repair specifications. |  Calibrating PunchSupports calibrating punch and panel-hole preparation work using the correct matched punch-and-die configuration. |  FlatteningMatched flattening dies can be used to prepare or flatten supported panel areas as required by the repair process. |

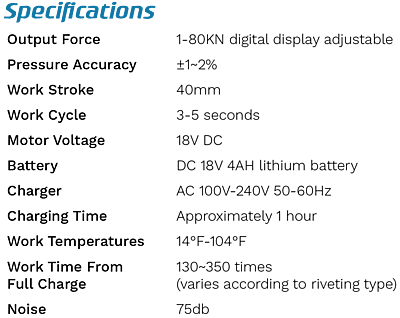

Technical Specifications
| Force & Control | |
|---|---|
| Force Control | Digital push-button pressure selection with real-time LCD display |
| Output Force | Ultra-high-pressure hydraulic system, up to 80 kN |
| Preset Modes | 9 adjustable pressure preset modes |
| Pressure Protection | Computerized real-time pressure monitoring |
| Trigger System | Advanced double-function (stop / go) trigger |
| Display & Light | |
| Digital Display | Real-time pressure, achieved pressure value, work-time per mode, pressure units, and battery level |
| Work Light | Built-in front LED with on-screen indicator |
| Tooling | |

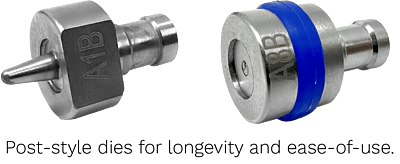

| Die System | Magnetic, post-style threadless dies; standard die kit included |

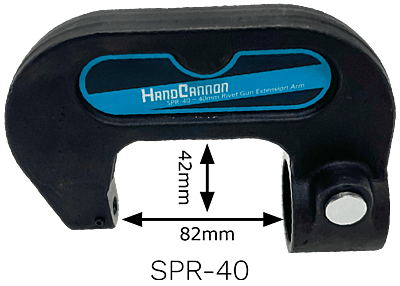

| Included Arm | SPR-40 42mm arm (SPR-130 128mm and SPR-220 222mm optional) |
| Power | |
| Battery | 18V 4Ah lithium-ion (two batteries included) |
| Charger | 18V 4Ah lithium-ion fast charger |
| Charging Time | Approximately 1 hour |
| Identification | |
| Model | Hand Cannon SPR-5-DFC |
| Tool Type | Cordless electric SPR riveting gun with digital force control |
| Hand Cannon Part No. | SPR-5-DFC |
| Sold & supported by | Innovative Solutions CRTE — Pompton Plains, NJ |
| Key SPR-5-DFC specifications for equipment comparison, shop planning, tool setup, and repair-equipment evaluation. Specifications can change without notice — confirm with CRTE before ordering for a specific OEM program. | |
Optional Arm Upgrades
The SPR-5-DFC includes the standard SPR-40 arm. Optional extension arms are available for shops requiring additional reach around deeper structures, pillars, rails, and difficult access points.

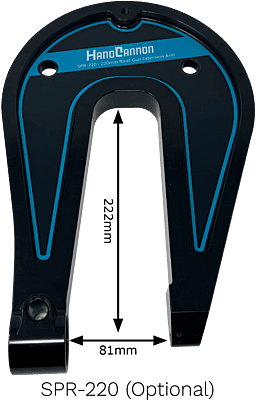

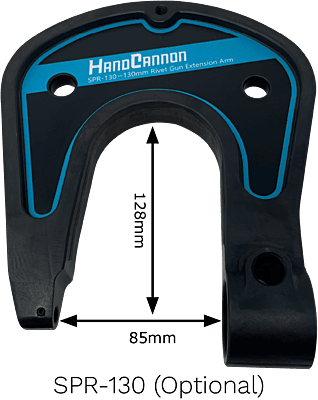

 Optional Arm Upgrade SPR-130 ArmMedium extension arm designed to provide additional reach and improved access for supported collision repair applications. View SPR-130 Arm → |  Maximum-Reach Upgrade SPR-220 ArmLarge extension arm for deeper reach requirements and difficult access points on supported repair applications. View SPR-220 Arm → |
Dies • Rivets • Consumables Standard die support for real collision repair work.The SPR-5-DFC uses the same die system as the standard CH-SPR-5. The standard die kit supports self-piercing rivets, solid rivets, flattening, flow-form rivets, rivet removal, and punching applications. Always match the die set, pressure setting, arm configuration, and rivet to the current OEM repair procedure. |
Digital Operation & Pressure Control
The SPR-5-DFC replaces manual guesswork with digital force control: select a force, watch it in real time, and recall preset modes for repeatable results across the shop.
1 Push-Button Pressure SelectionSet the required riveting force digitally with push-button controls, removing the guesswork of manual pressure adjustment. | 2 Real-Time LCD Display & LED LightMonitor applied pressure in real time on the digital screen, with a built-in LED work light illuminating the repair area. | 3 Preset Modes & ProtectionRecall nine adjustable preset modes for repeatable setups, backed by computerized pressure protection against over-pressure. |
CH-SPR-5 vs SPR-5-DFC
Both guns share the same cordless “click-in” battery platform, quick-change arms, and magnetic post-style die system. The SPR-5-DFC adds digital force control, on-screen feedback, adjustable preset modes, and higher output for shops that need documented, repeatable riveting.
| Feature | CH-SPR-5 | SPR-5-DFC |
|---|---|---|
| Cordless “click-in” battery | ✓ | ✓ |
| Magnetic post-style dies | ✓ | ✓ |
| Standard rivet die kit included | ✓ | ✓ |
| Quick-connector arm change | ✓ | ✓ |
| Pause operation during rivet cycle | ✓ | ✓ |
| Manual pressure adjustment knob | ✓ | — |
| Pressure release button | ✓ | — |
| Large digital LCD screen | — | ✓ |
| Push-button pressure selection | — | ✓ |
| Real-time pressure display during operation | — | ✓ |
| Nine adjustable preset modes | — | ✓ |
| Computerized pressure protection | — | ✓ |
| Advanced double-function (stop / go) trigger | — | ✓ |
| Front LED work light | — | ✓ |
| Ultra-high-pressure hydraulic system (up to 80 kN) | — | ✓ |
| Lithium-ion batteries included | 1 | 2 |
Step down, add on, or go air-hydraulic
|
|
Air-Over-Hydraulic Alternative Prefer a traditional 10-ton air-hydraulic rivet gun?Some collision repair facilities prefer an air-over-hydraulic riveting system based on workflow, technician preference, existing compressed-air infrastructure, OEM requirements, or the need for higher clamping force. CRTE also offers the GYS GYSPRESS 10T, providing up to 10 tons of riveting pressure with a complete professional kit and protective storage case. View GYS 10T Rivet Gun → |
|
Downloads & Resources
Access the SPR-5-DFC brochure, operating manual, riveting collection, accessories, and related equipment from CRTE.
Brochure SPR-5-DFC BrochureReview the unit's digital features, applications, included items, arms, dies, and technical specifications. Open Brochure → | Manual Instruction ManualReview setup, safety, digital operation, pressure adjustment, troubleshooting, and maintenance information. Open Manual → | Consumables Riveting CollectionShop Hand Cannon rivets, dies, optional arms, accessories, and supported riveting consumables. Shop Consumables → | Compare CH-SPR-5 (Non-Digital)Compare the digital SPR-5-DFC against the standard manual-pressure CH-SPR-5 model. View CH-SPR-5 → |
Need Help Choosing? CRTE can help you select the right riveting setup.Whether you are comparing the SPR-5-DFC, the standard CH-SPR-5, the Blind Rivet Adapter, optional arms, dies, consumables, or the GYS GYSPRESS 10T, CRTE can help match your shop with the right solution for its repair workflow. |
