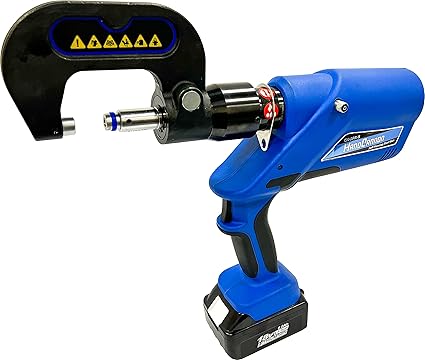

Hand Cannon CH-SPR-5 Cordless Self-Piercing Rivet Gun System with Die Kit, 25-55 kN, 18V | For Aluminum and Steel Repair
Battery-powered rivet gun for aluminum and steel collision repair. Sets and removes self-piercing rivets, sets solid and flow-form rivets, flattens, and drives pin-and-collar fasteners — no air hose, no separate hydraulic unit to drag around the car.
In the box: gun, 40 mm arm, die kit in toolbox, battery, charger, shoulder strap and carrying case. Thousands in service. Sold and supported by Innovative Solutions CRTE — demo, training and parts from one desk.
Choose Quantity
|
25–55 kN Adjustable output force | ±3% Pressure accuracy | 5–8 s Work cycle | 130–350 Cycles per charge |
Why Shops Choose It Fast cordless riveting without tying the technician to a machine.The CH-SPR-5 is designed for real shop use with fast work cycles, precise manual pressure adjustment, quick arm changes, quiet operation, and a high-capacity 18V battery platform.
| Included Kit Core equipment included with the CH-SPR-5.The CH-SPR-5 package includes the main cordless rivet gun and the standard items needed to support common collision repair riveting applications.
|

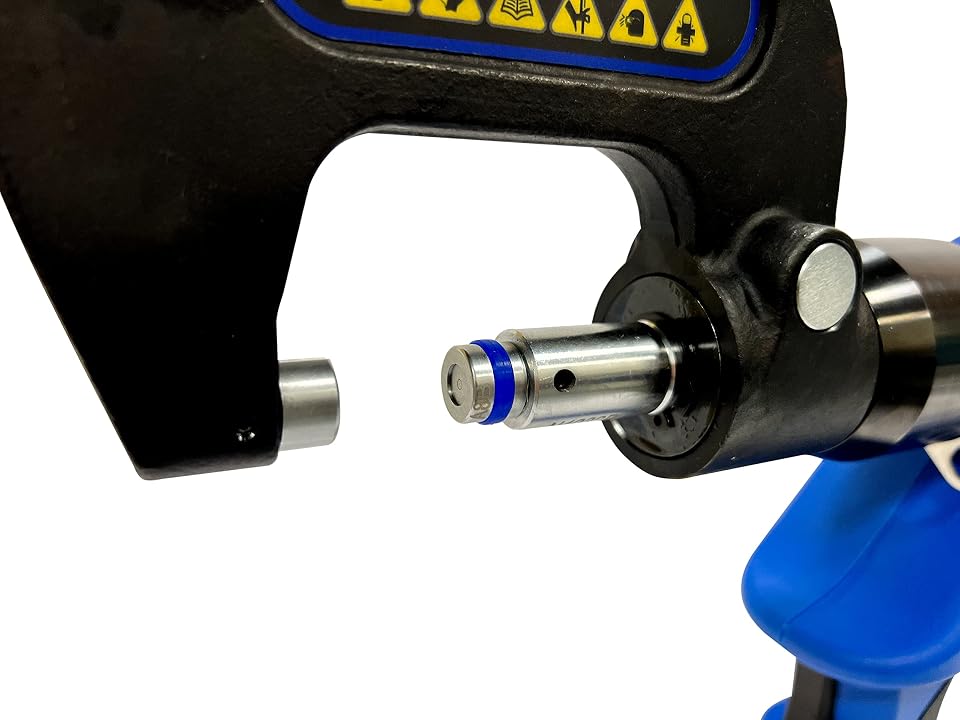

Built for the Repair Floor Cordless freedom where the technician needs it.The battery-powered design allows technicians to work around vehicles, structural components, quarter panels, pillars, and difficult access areas without managing an air hose or separate hydraulic power unit. |  |
Riveting and Repair Applications
The CH-SPR-5 supports a wide range of collision repair riveting, removal, forming, and panel-preparation operations. Always use the correct die configuration, pressure setting, arm, and current OEM repair procedure.

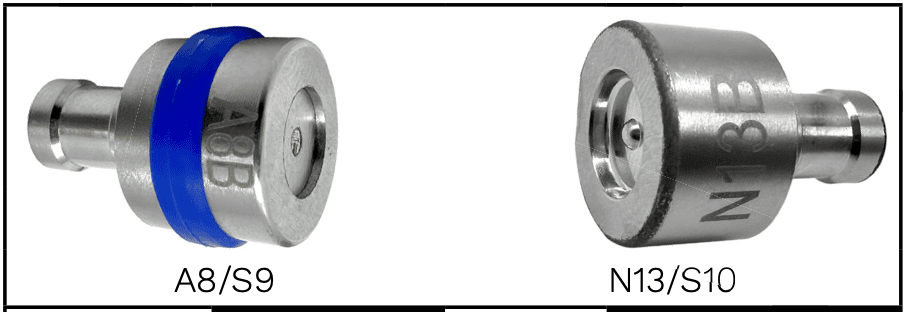

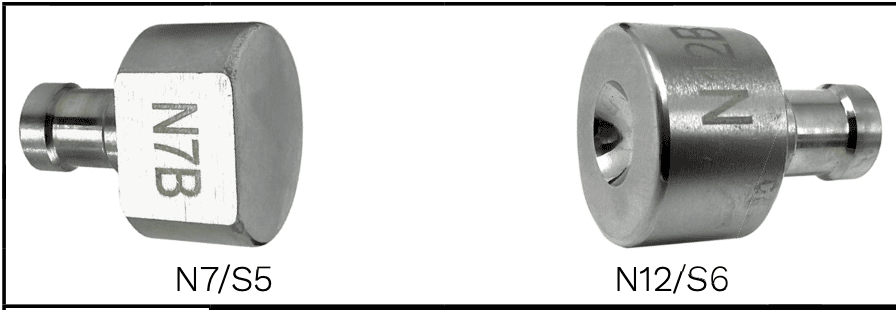

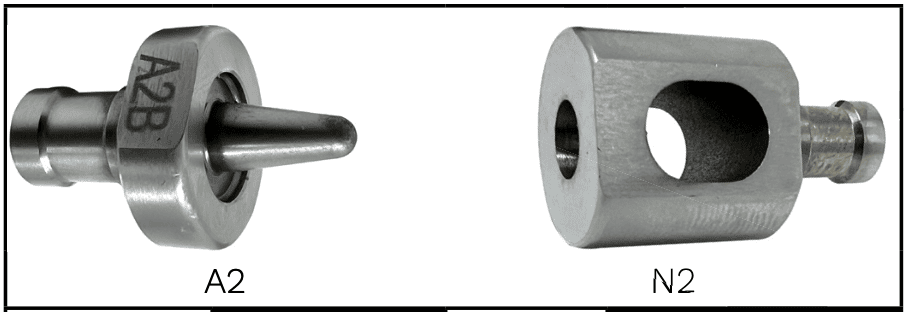

 Self-Piercing RivetsSupports controlled SPR installation where the repair procedure calls for panel fastening without conventional pre-drilling. |  Solid RivetsInstall supported solid rivets using the proper punch, die, pressure setting, material stack, and repair procedure. |  Rivet RemovalSupports controlled rivet removal using the correct male and female die combination for the rivet and repair area. |

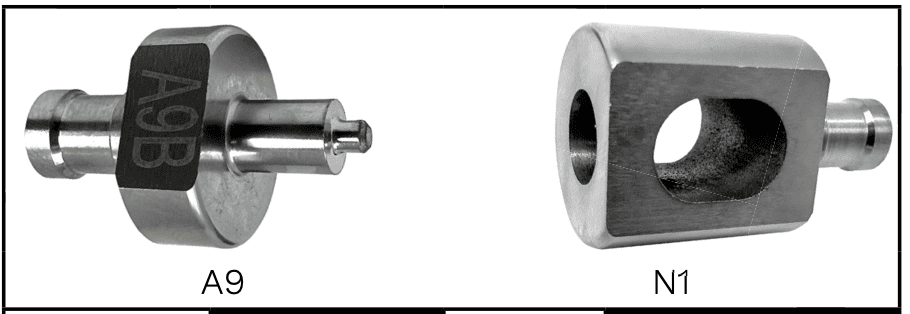

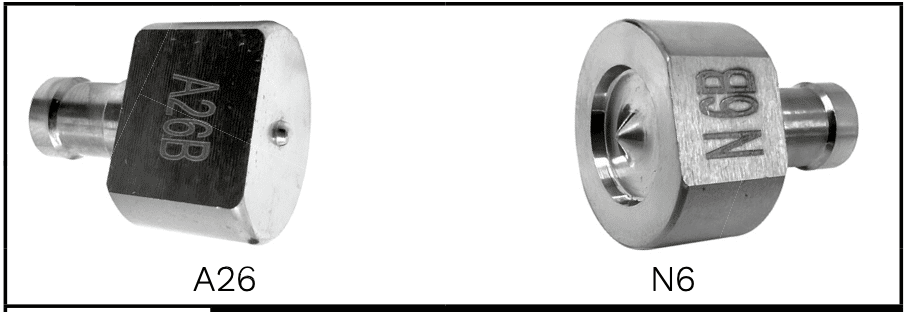

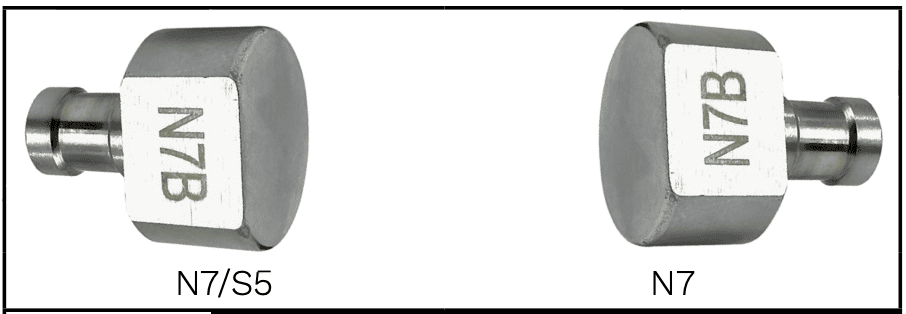

 Flow-Form RivetsSupports flow-form and countersunk FFR rivet applications when paired with the correct dies and repair specifications. |  Calibrating PunchSupports calibrating punch and panel-hole preparation work using the correct matched punch-and-die configuration. |  FlatteningMatched flattening dies can be used to prepare or flatten supported panel areas as required by the repair process. |
Technical Specifications
| Performance | |
|---|---|
| Output Force | 25–55 kN adjustable |
| Pressure Accuracy | ±3% |
| Work Stroke | 35–40mm |
| Work Cycle | 5–8 seconds |
| Noise | 75 dB |
| Power | |
| Motor Voltage | 18V DC |
| Battery | 18V DC 4Ah lithium battery |
| Charger | AC 100V–240V, 50–60Hz |
| Charging Time | Approximately one hour |
| Cycles From Full Charge | Approximately 130–350 cycles depending on selected working pressure |
| Operating | |
| Working Temperature | 14°F–104°F |
| Identification | |
| Model | Hand Cannon CH-SPR-5 |
| Tool Type | Cordless electric SPR riveting gun |
| Hand Cannon Part No. | CH-SPR-5 |
| Sold & supported by | Innovative Solutions CRTE — Pompton Plains, NJ |
| Key CH-SPR-5 specifications for equipment comparison, shop planning, tool setup, and repair-equipment evaluation. Specifications can change without notice — confirm with CRTE before ordering for a specific OEM program. | |
Optional Arm Upgrades

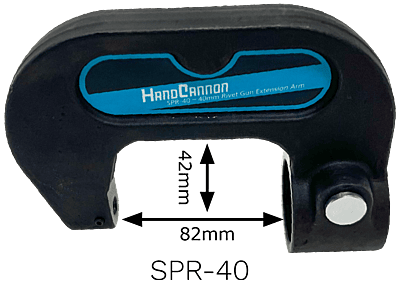

The CH-SPR-5 includes the standard SPR-40 arm. Optional extension arms are available for shops requiring additional reach around deeper structures, pillars, rails, and difficult access points.

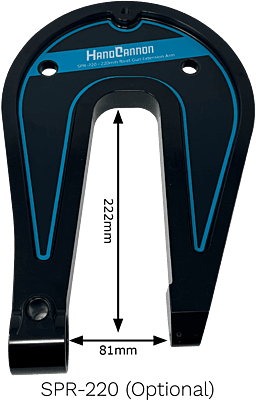

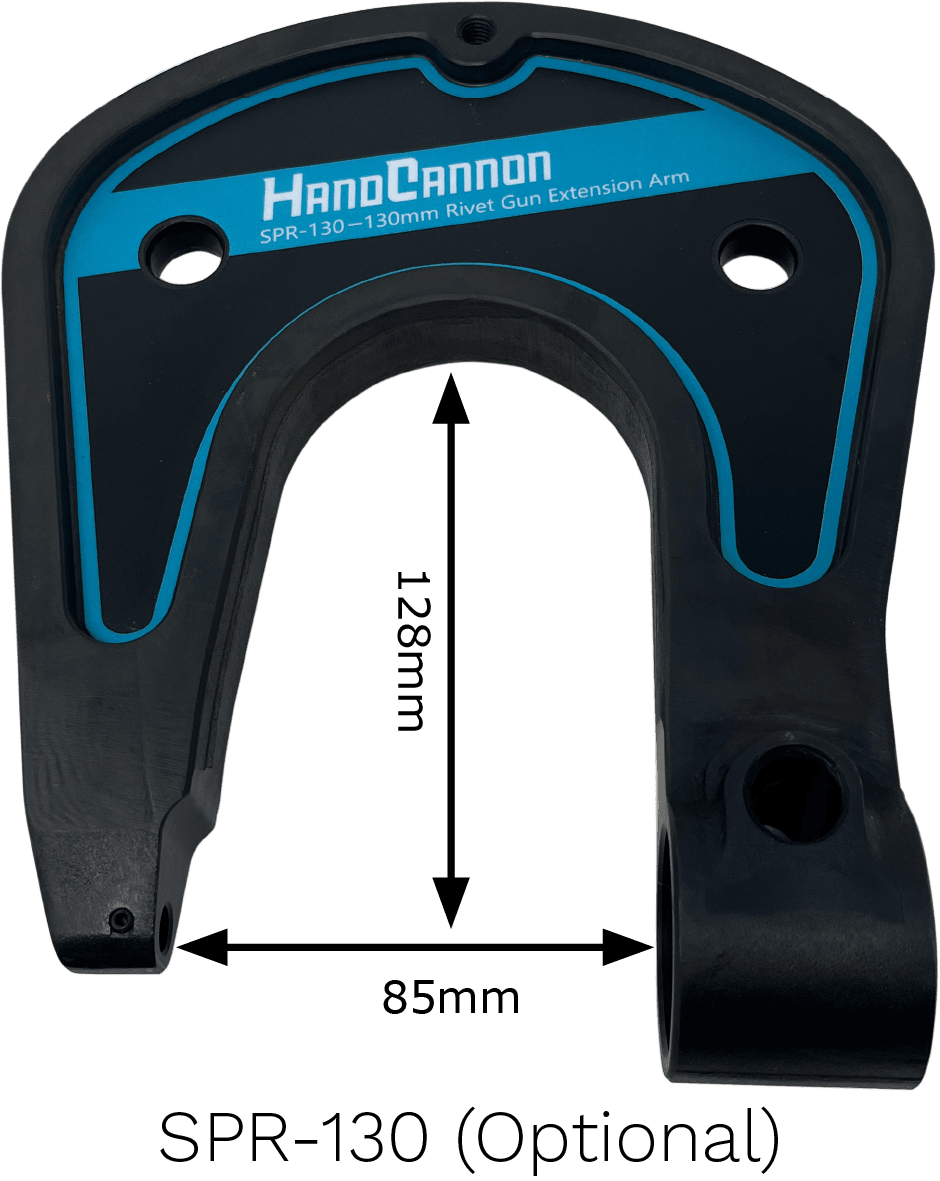

 Optional Arm Upgrade SPR-130 ArmMedium extension arm designed to provide additional reach and improved access for supported collision repair applications. View SPR-130 Arm → |  Maximum-Reach Upgrade SPR-220 ArmLarge extension arm for deeper reach requirements and difficult access points on supported repair applications. View SPR-220 Arm → |

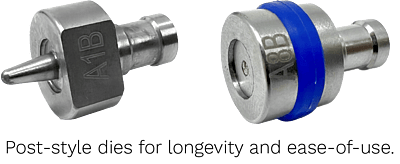

Dies • Rivets • Consumables Standard die support for real collision repair work.The standard die kit supports self-piercing rivets, solid rivets, flattening, flow-form rivets, rivet removal, and punching applications. Always match the die set, pressure setting, arm configuration, and rivet to the current OEM repair procedure. |
Operation & Pressure Control

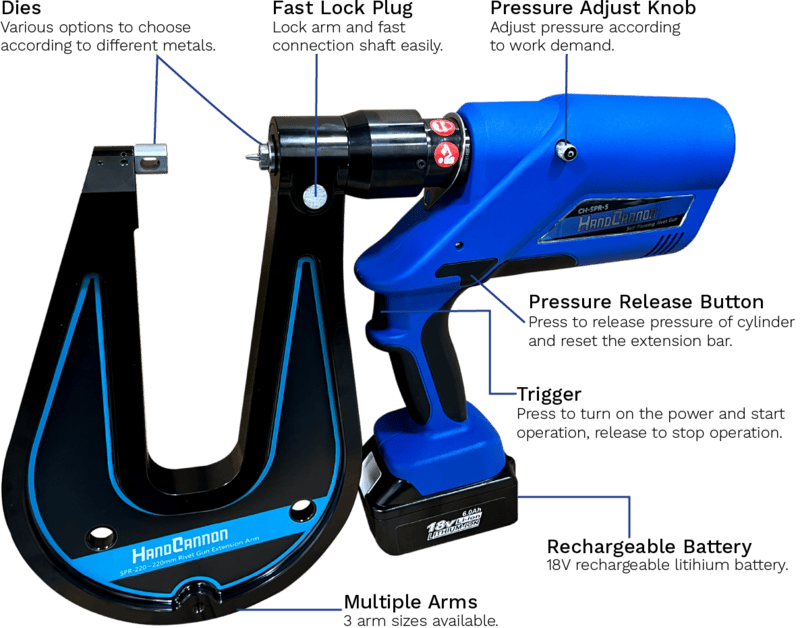

The CH-SPR-5 uses a manual pressure adjustment knob and pressure release button, giving technicians direct control while keeping the tool compact and straightforward to operate.
1 Manual Pressure AdjustmentAdjust operating pressure according to the material, thickness, die set, rivet, and repair requirement. | 2 Pressure Release ButtonThe pressure-release button resets the extension bar and releases pressure when required during operation, adjustment, or setup. | 3 Quick Arm ConnectionRemove the locking pin, slide the selected arm into place, and reinstall the pin for fast arm changes between repair operations. |
Compare, add on, or go air-hydraulic
|
|

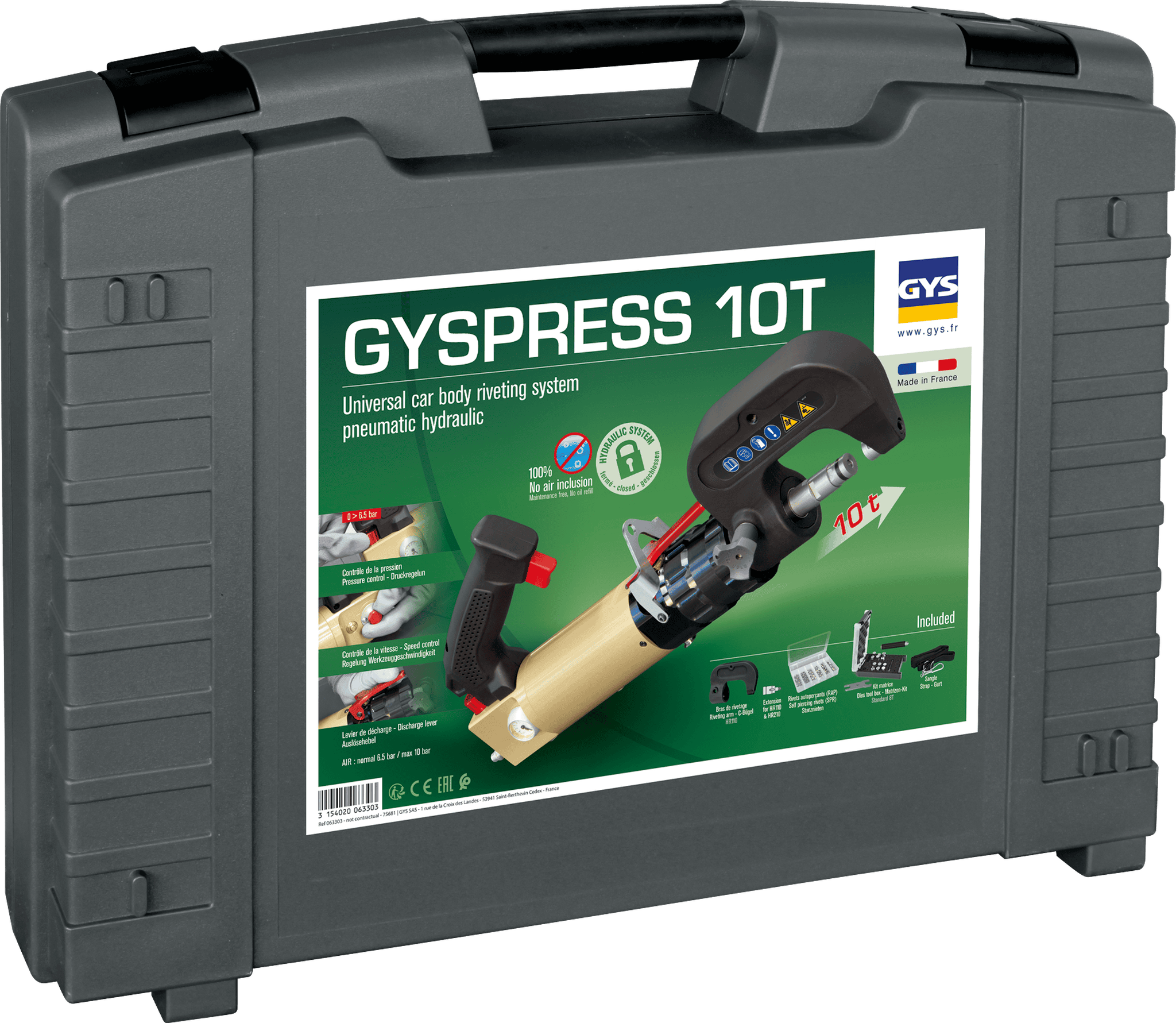

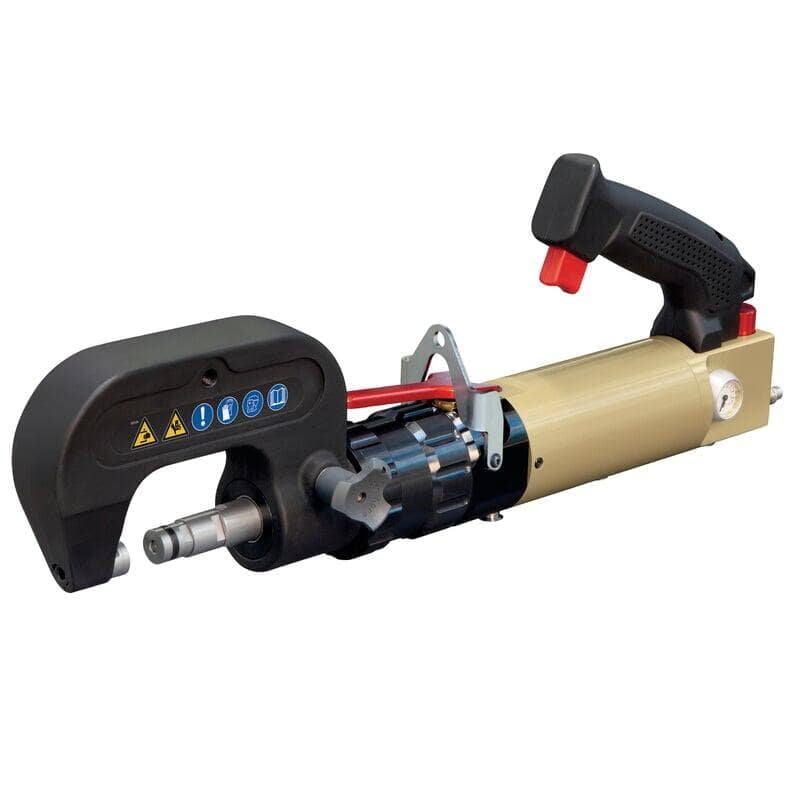

Air-Over-Hydraulic Alternative Prefer a traditional 10-ton air-hydraulic rivet gun?Some collision repair facilities prefer an air-over-hydraulic riveting system based on workflow, technician preference, existing compressed-air infrastructure, OEM requirements, or the need for higher clamping force. CRTE also offers the GYS GYSPRESS 10T, providing up to 10 tons of riveting pressure with a complete professional kit and protective storage case. View GYS 10T Rivet Gun → |
|
Downloads & Resources
Access the CH-SPR-5 brochure, operating manual, riveting collection, accessories, and related equipment from CRTE.

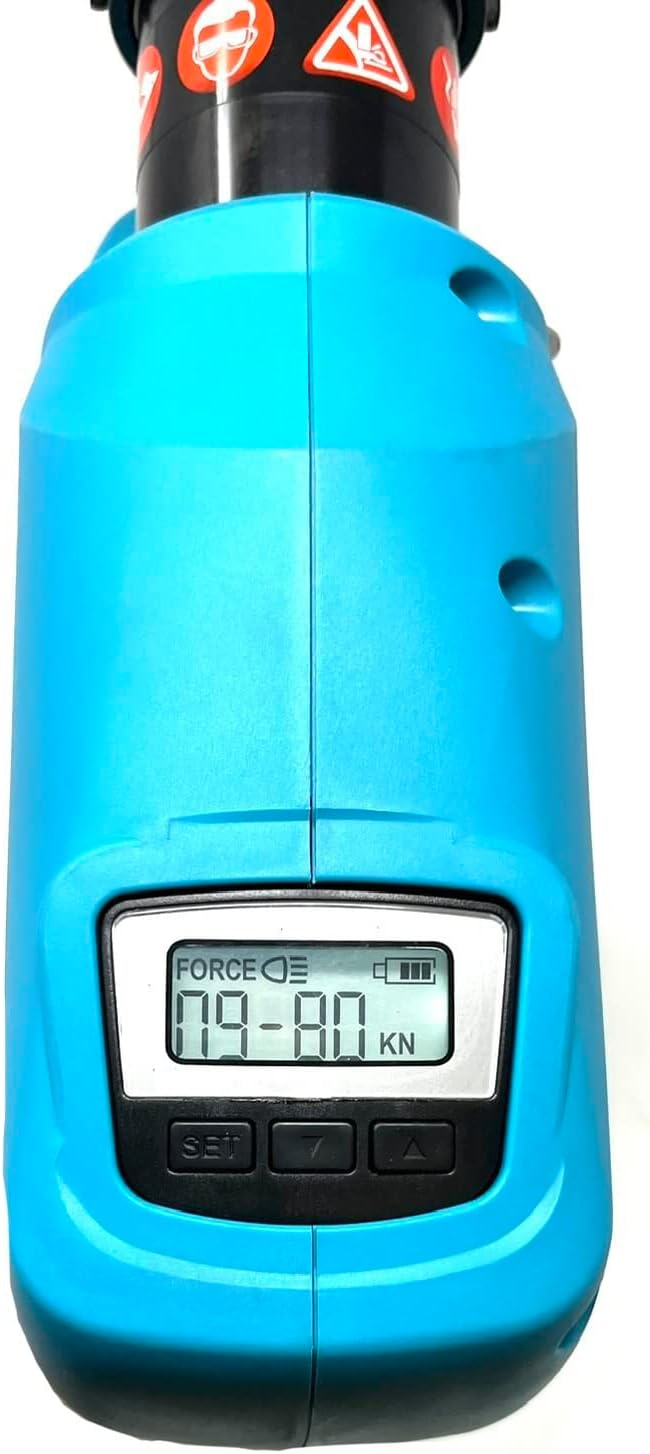

Brochure CH-SPR-5 BrochureReview the unit's features, applications, included items, arms, dies, and technical specifications. Open Brochure → | Manual Instruction ManualReview setup, safety, operation, pressure adjustment, troubleshooting, and maintenance information. Open Manual → | Consumables Riveting CollectionShop Hand Cannon rivets, dies, optional arms, accessories, and supported riveting consumables. Shop Consumables → | Compare SPR-5-DFCCompare the standard CH-SPR-5 against the upgraded digital-force control model. View DFC Model → |

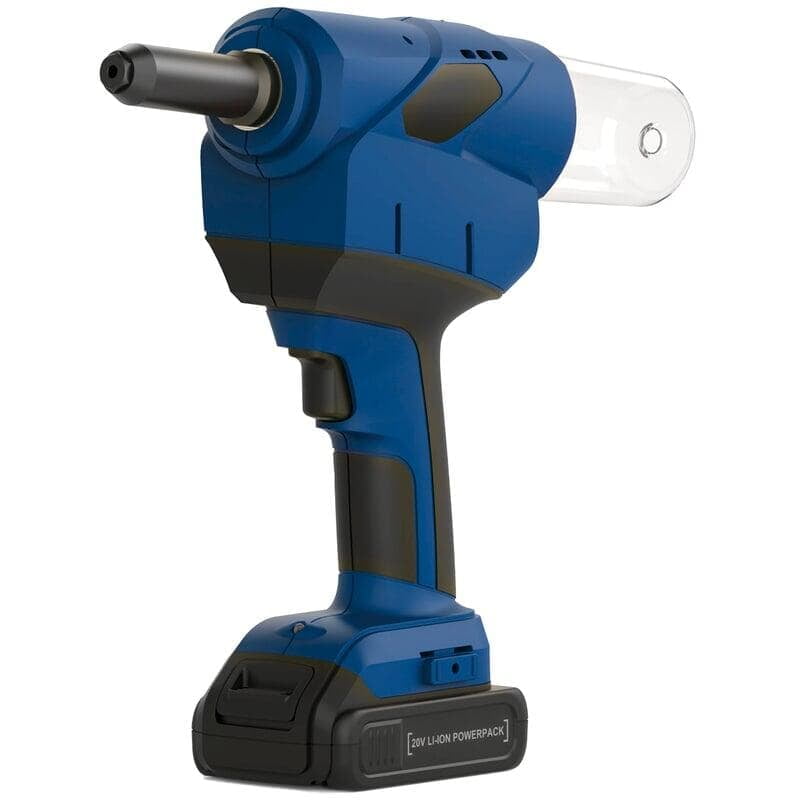

Need Help Choosing? CRTE can help you select the right riveting setup.Whether you are comparing the CH-SPR-5, SPR-5-DFC, Blind Rivet Adapter, optional arms, dies, consumables, or the GYS GYSPRESS 10T, CRTE can help match your shop with the right solution for its repair workflow. |
