GYS 083288 — GYSPOT PTI Genius Plus 208/240V Spot Welder, 14,500 A, 600 daN Clamping

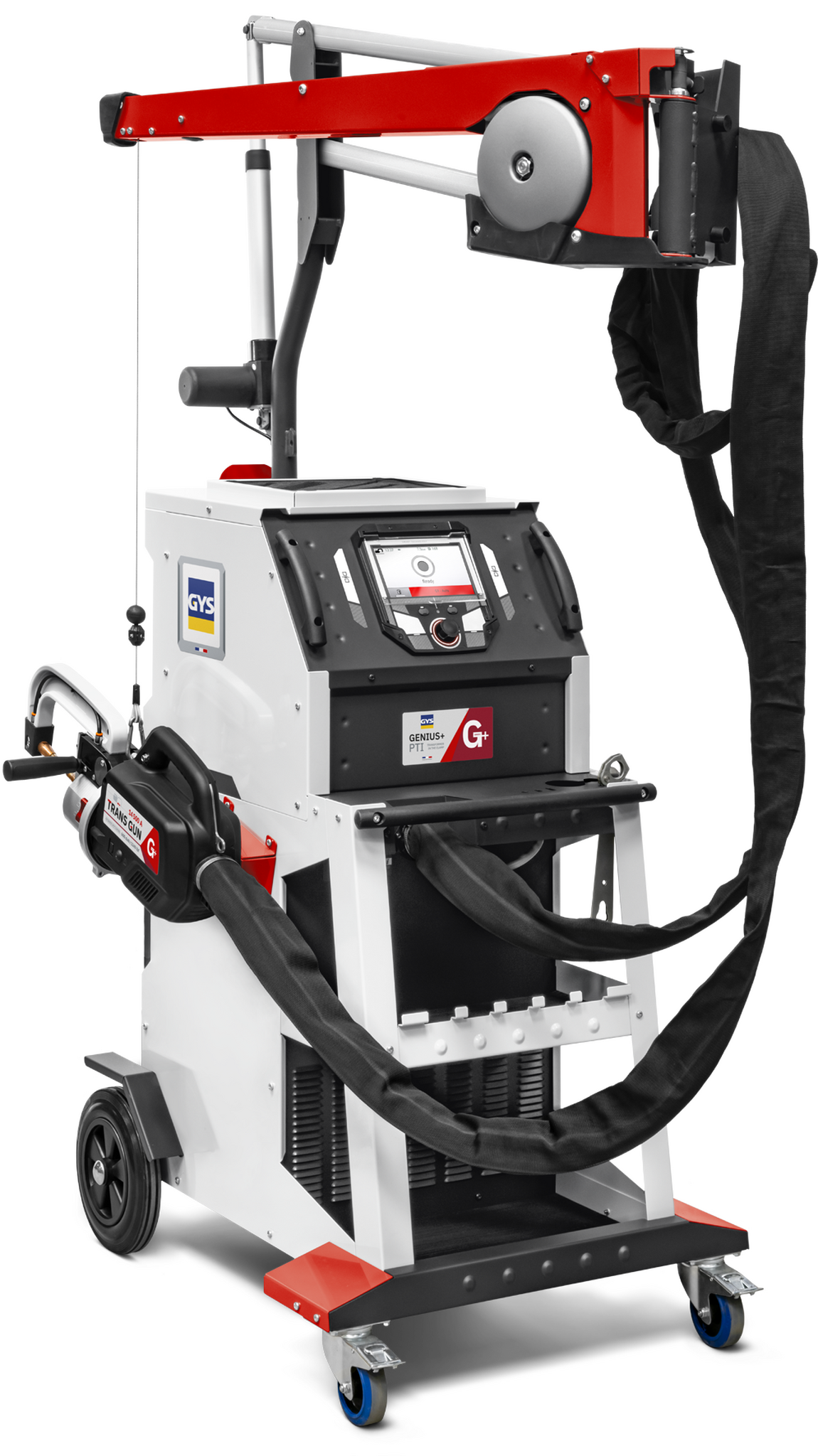

The GYS GYSPOT PTI Genius Plus (Ref. 083288) is a 208/240V automatic spot welder with 14,500 A max weld current, clamping force up to 600 daN, and a lightweight 27.3 lb clamp with pneumatic over-opening and a patented quick-release cable lock. Its 7" colour interface and motorised balancing boom make configuration and daily operation simple for every technician. Sold and supported by Innovative Solutions CRTE.
Choose Quantity
GYS · Spot Welding · Ref. 083288 GYS GYSPOT PTI GENIUS Plus14,500 A. 600 daN clamping. 7" colour interface. The result of continuous innovation by GYS, the GYSPOT PTI GENIUS Plus revolutionises spot welding: a lightweight clamp with pneumatic over-opening, simplified arm positioning, and an extended motorised overhanging balancing system for unrivalled mobility and accessibility. Its patented cable locking system makes it easy to detach the clamp quickly, and the new 7" colour interface keeps setup simple for every technician.
|
| 27.3 lbsClamp weight | 7.9 US galLiquid coolant capacity | 55 inBoom offset from source | 19 ftInterconnection cable |
Why shops buy it
Genius Plus ergonomics, OEM-grade output
| ✓ | High duty cycle with max. 14,500 A welding current, ideal for HSS/VHSS, UHSS and Boron steel on modern vehicles. |
| ✓ | Clamping force up to 600 daN at 116 psi to meet OEM requirements, with 15 spots/min high-speed welding. |
| ✓ | Liquid-cooled (7.9 US gal) transformer, electrodes and caps keep productivity up through long shifts. |
| ✓ | Clamp-integrated transformer reduces power consumption to a minimum — just a 50 A fuse. |
| ✓ | Motorised boom arm offset 55 in from the power source, with a 90° folding arm to optimise floor space. |
| ✓ | Patented cable lock (GYS patent) lets techs detach the clamp for maintenance without tools. |
Features
Easy to use, easy to trust

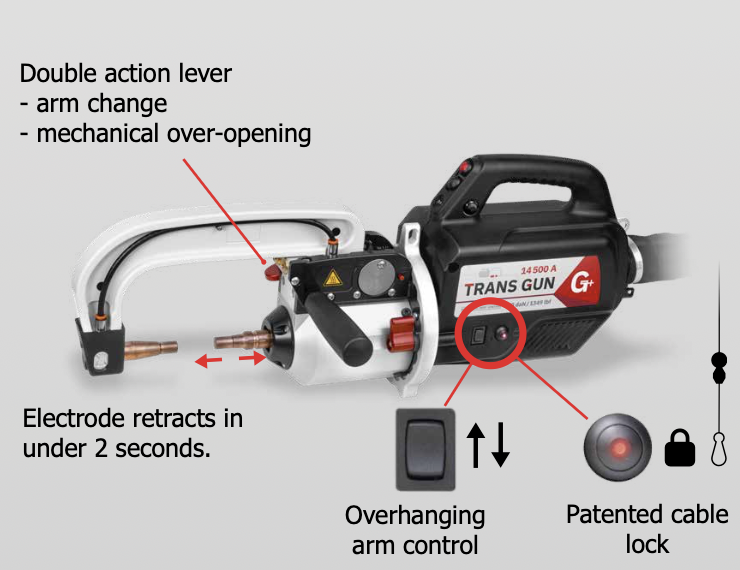

| 1 Automatic mode The intelligent clamp detects the correct welding parameters on its own. | 2 Pneumatic over-opening 3 in of clearance between the two caps for faster repositioning. | 3 7" colour interface Improved user interface built for every automotive repair professional. |
| 4 Spot counter Tracks cap wear so techs know exactly when to change consumables. | 5 Premium G-Arms Quick and easy tool-free arm changes, with brass clamp holder and automatic coolant connection. | 6 Full traceability Spot-weld data exports via USB, with complete machine updates via USB stick. |
In the box
What ships with it
| ✓ | GYSPOT PTI GENIUS Plus liquid-cooled clamp and control unit |
| ✓ | G1 arm, complete |
| ✓ | Electronic adjustable boom / balancing system |
| ✓ | 19 ft interconnection cable between clamp and machine |
| ✓ | Reinforced mobile trolley with 7.9 US gal coolant tank |
Specifications
Full spec sheet
| Performance | |
|---|---|
| Max weld current (240V) | 14,500 A |
| Max weld current (230V) | 14,500 A |
| Max weld current (208V) | 13,000 A |
| Max weld current (200V) | 12,500 A |
| Spot rate | 15 spots/min (max) |
| Clamping force | Up to 600 daN at 116 psi (8 bar) |
| Power | |
| Supply | 3-phase, 208/240 V, 50/60 Hz |
| Fuse | 40 A |
| Clamp fuse (integrated transformer) | 50 A |
| Cooling | |
| Cooling | Liquid-cooled transformer, electrodes & caps |
| Coolant tank | 7.9 US gal |
| Dimensions & weight | |
| Clamp weight | 27.3 lbs, 360° rotation via built-in gyroscope |
| Boom offset from power source | 55 in |
| Interconnection cable | 19 ft, disconnectable for clamp maintenance |
| Display | 7 in colour touchscreen |
| Standard | EN 62135-1 |
| Made in | France |
| Identification | |
| GYS Ref. | 083288 |
| EAN | 3154020083288 |
| Sold & supported by | Innovative Solutions CRTE, Pompton Plains NJ |
| Figures from the GYS datasheet (planet.gys.fr, UK edition). Specifications can change without notice — confirm with CRTE before ordering for a specific OEM programme. | |
Works with
Also available as a CRTE flagship page
The GYSPOT PTI.G Genius Plus 208/240V has its own dedicated flagship page on the CRTE store with full marketing detail — see the GYS equipment line to find it, or browse the full G-arms lineup for additional arm options.
Documents & pricing Datasheet, manual, and a real quoteGYS equipment is sold through CRTE with installation, training and warranty support from our New Jersey shop. Request PricingDatasheet (PDF)User Manual (PDF) |
