TEXA S1261G0TV RCCS 3 EVO ADAS Calibration System, 75 in 4K Monitor | Radar, Camera, LiDAR and Sensor Calibration
TEXA RCCS 3 EVO · 75" Monitor
TEXA’s top-of-range ADAS calibration system with a 75" 4K screen and digital targets — calibrate radar, camera, LiDAR and sensors to OE spec in far less space than a wall of physical boards.
Display: 75" 4K · Covers: radar, camera, LiDAR, sensors
A flagship TEXA ADAS solution, sold and supported by CRTE.
Choose Quantity
TEXA RCCS 3 EVO ADAS Calibration System with 75" Monitor
Digital ADAS calibration — precise, repeatable, and a whole lot less clutter.

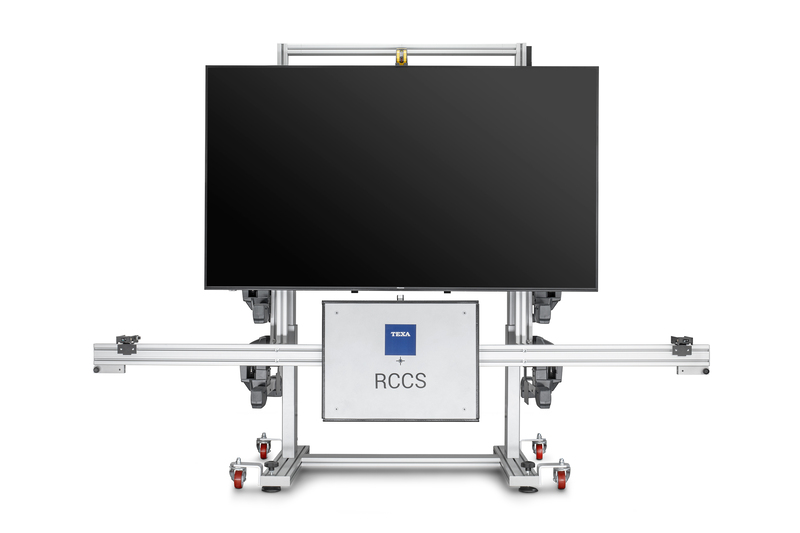

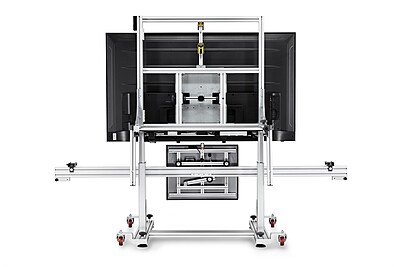

The TEXA RCCS 3 EVO is a top-of-the-range ADAS calibration system engineered for the calibration of radar, LiDAR, cameras, and sensors. A 75" 4K HD display presents true-to-scale digital targets that meet OE specifications, replacing dozens of bulky printed boards with a single digital system that takes up far less floor space.
Built for accuracy, the RCCS 3 EVO combines CCD-sensor alignment checks, three-axis laser measurement, and precise vehicle centering and squaring with toe and thrust-angle checks — so every calibration starts from a correctly referenced vehicle. It is designed for both static and dynamic calibration across a wide range of makes.
Why Shops Choose the RCCS 3 EVO
- Digital targets: a 75" 4K screen shows OE-spec targets at 1:1 scale — no board library to store.
- Multi-sensor: radar, LiDAR, camera and sensor calibration in one system.
- Precise setup: three-axis laser measurement, self-centering wheel clamps, and squaring/toe checks.
- Space-saving: one frame replaces a room full of physical targets.
- OE-level results: dealer-grade accuracy without the OE complexity.
Specs
| Model | TEXA RCCS 3 EVO |
| SKU | S1261G0TV |
| Display | 75" 4K HD monitor |
| Calibrates | Radar, LiDAR, cameras, sensors |
| Includes | Calibration frame, self-centering wheel clamps, laser distance measurement |
| Modes | Static and dynamic calibration |
