Stanzani S-0133 Right-Angle Pull Clamp Art. 133, 10-Ton | For Structural Pulls in Tight Spots
Choose Quantity
 | Stanzani Clamp Components & Service Documentation
Made in ItalyExploded Assembly • Dimensional Drawing • Spare Parts Ordering
|
Technical Documentation & Service Resources
| Download Datasheet | View Certification | Exploded Parts Diagram | Replacement Parts |

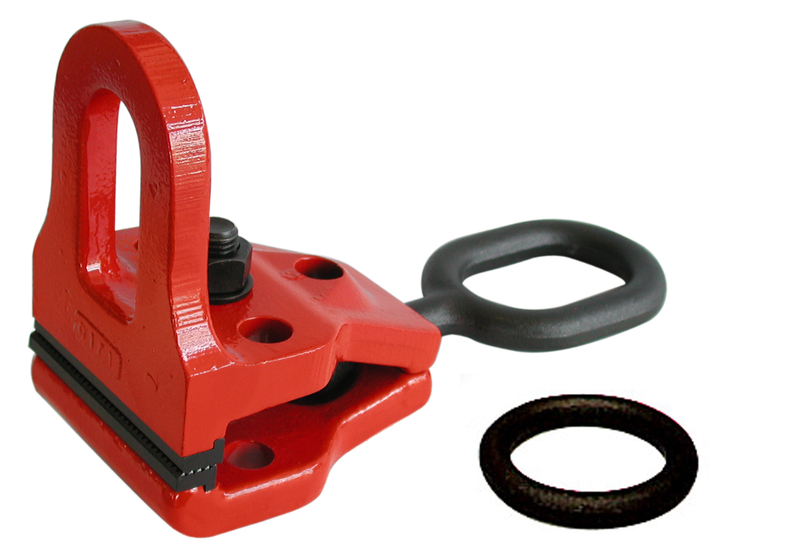

Right Angle Pull Clamp 133 – 10-Ton, 90° Structural Pull Clamp
The Stanzani Right Angle Pull Clamp 133 is a professional-grade 10-ton pull clamp engineered for controlled 90-degree pulling applications in collision repair. Its specialized geometry makes it especially effective when the pull must be redirected around edges or applied in confined structural areas where a traditional straight-line clamp setup is less effective.
Built for rocker panels, wheel arches, flanges, and other difficult access points, the Right Angle Pull Clamp 133 gives technicians a practical way to maintain strong bite and better pull direction control in repairs that demand a more specialized approach.
Designed for Controlled 90° Pulling
The defining advantage of the 133 is its ability to manage pulling force at a right angle without sacrificing clamp stability. In repairs where the pull path needs to be redirected or where space limits a conventional setup, this design helps create a more usable, controlled pulling point.
With a 100 mm jaw width, 10-ton pull rating, and high-grade forged steel construction, the Right Angle Pull Clamp 133 is a dependable tool for technicians handling structural repairs in tighter, more complex body and frame areas.
Technical Specifications
Fully Serviceable Design: All components shown in the exploded assembly diagram are available individually for service and replacement.

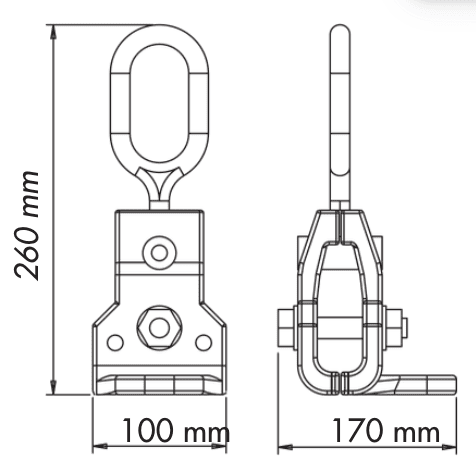

| Dimensional Drawing Dimensional reference for the Right Angle Pull Clamp 133 assembly.
|
Exploded Assembly & Spare Parts
 Diagram shown for reference. Positions correspond to the parts list.
|
Parts List (Positions & Quantities)
Need assistance identifying a component? Contact CRTE Technical Support prior to ordering. |
Why Right-Angle Pulling Tools Matter in Complex Repairs
In collision repair, not every structural correction can be pulled in a straight line. Tight access, awkward body geometry, and confined damage locations often require the pull direction to be redirected to reach the repair area effectively.
A right-angle pull clamp gives technicians more flexibility when working around rocker panels, wheel openings, and structural flanges where a conventional setup may not create the right pull path. When the tool matches the geometry of the repair, control and stability improve.
The Stanzani Right Angle Pull Clamp 133 is engineered for that exact purpose, combining a 10-ton pulling capacity, 100 mm jaw width, and forged steel durability into a specialized pulling solution for 90-degree repair scenarios.
For shops that need more control in confined repair areas and non-linear pulling situations, the Right Angle Pull Clamp 133 is a durable, purpose-built solution that adds flexibility without sacrificing strength.
