GYS 021990 GYSPOT ALU PRO FV Capacitor Discharge Stud Welder, 85-265 V | Aluminum Dent Pulling, M4 / M5 / M6 Studs

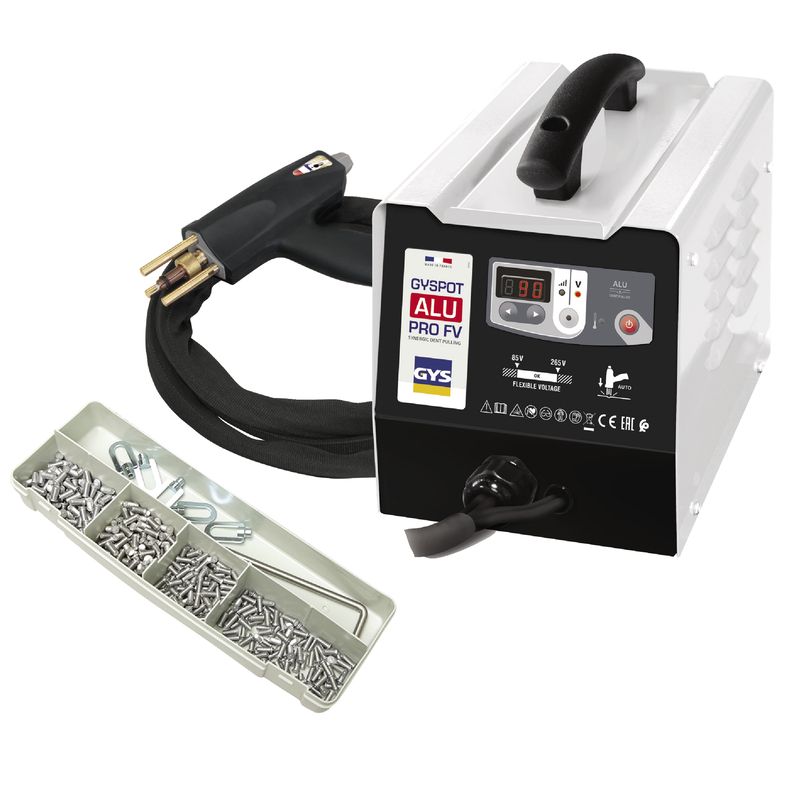

GYSPOT ALU PRO FV – Capacitor Discharge Aluminum Dent Repair System
The GYSPOT ALU PRO FV is a professional aluminum dent repair station designed for fast, efficient, and non-invasive panel straightening. Built in France and compliant with IEC 62135-1, this system delivers the perfect balance of affordability and performance for body shops handling modern aluminum vehicles.
Applications
Cosmetic dent removal on aluminum doors, hoods, and panels
Medium-depth panel repair without panel replacement
Collision repair shops expanding into aluminum vehicle repair
Choose Quantity
Product Details – GYSPOT ALU PRO FV
Model / Reference: 021990
Made in: France (IEC 62135-1 compliant)
Technology: Capacitor Discharge (CD) stud welding
Primary Use: Aluminum dent pulling and body panel straightening (doors, hoods, fenders, etc.)
Key Features
Capacitor Discharge Welding – 66 mF capacitor bank with ultra-fast 3 ms weld pulse.

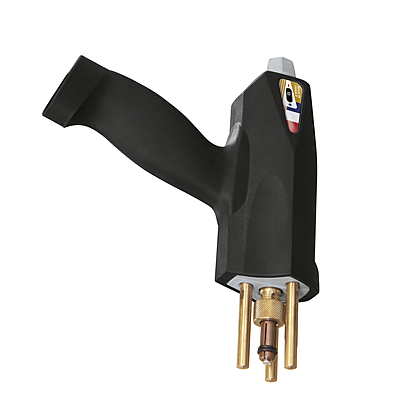

Automatic Gun – No trigger required; weld initiates automatically when tip contacts panel.
Ground Integration – 3 brass studs integrated for excellent electrical contact and stability.
Spring-Loaded Adjustment – Adapts easily to different surfaces and provides consistent pressure.

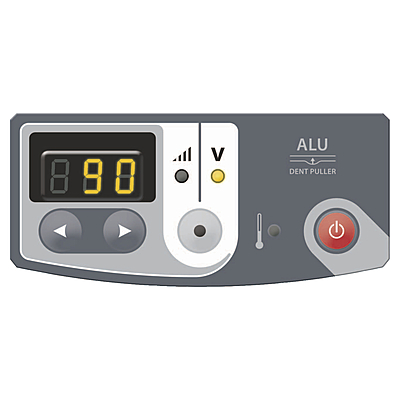

Microprocessor Control – Selectable modes:
Voltage mode: 50–200 V adjustable
Power mode: 0–10 adjustable
Flexible Voltage Supply – Operates from 85 V to 265 V (compatible with 110 V / 230 V shop outlets).
Stud Size Compatibility: M4, M5, M6 aluminum studs.
Included Accessories:
Automatic gun with 3 ground terminals
Aluminum dent removal accessory box (ALU BOX STANDARD M4 – Ref. 050020)
Chuck for Ø 4 mm studs
Technical Specifications
Max Welding Current: 13,000 A
Welding Pulse Duration: 3 ms
Input Voltage: 85–265 V (Flexible Voltage)
Frequency: 50/60 Hz
Dimensions (L × W × H): 8.25” × 9.5” × 14”
Weight: 31 lbs
Applications
Cosmetic dent removal on aluminum panels
Straightening hoods, doors, and fenders
Expanding shop aluminum repair capabilities without high investment cost
