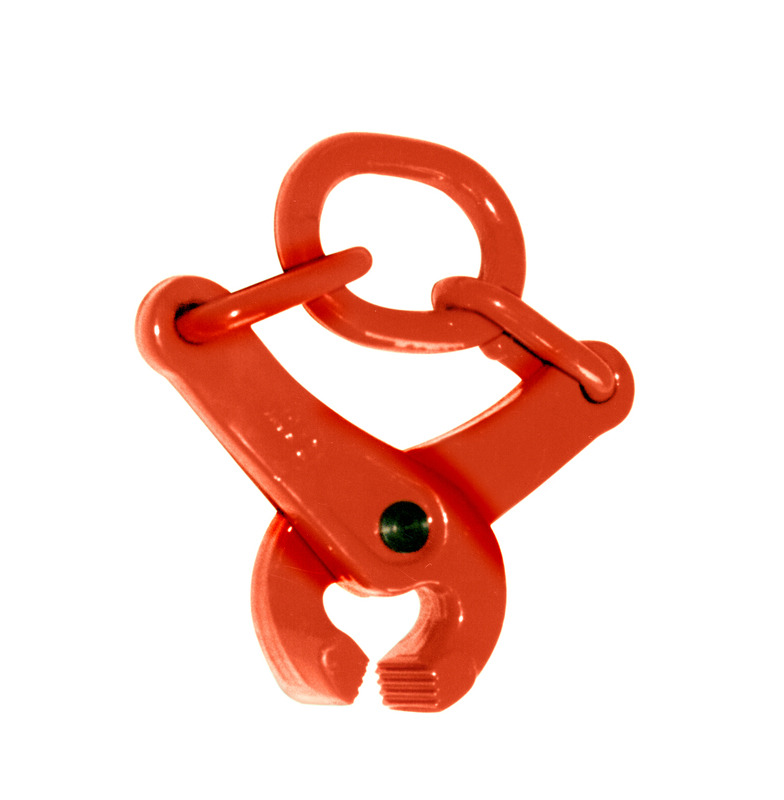

Pull Plier 144 – 4-Ton Low-Profile Pull Clamp

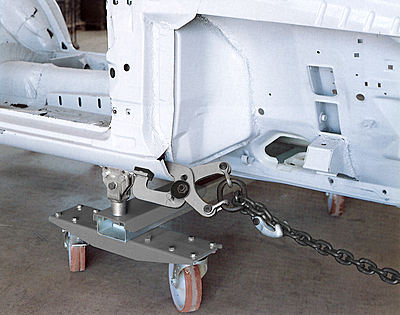

The Stanzani Pull Plier 144 is a professional-grade, forged steel 4-ton low-profile pull clamp engineered for technicians who need dependable holding power in confined repair zones. Its compact body and wide-opening jaw make it especially effective in areas like side sills, inner wheel houses, and other tight structural locations where larger clamps are harder to position.
Despite its nimble size, the Pull Plier 144 delivers serious pulling performance with strong bite, controlled engagement, and excellent technician access. It is designed for shops that need precise placement without giving up real working strength.
Low-Profile Power for Tight Structural Areas
The Pull Plier 144 is built around a low-profile, high-tension design that helps technicians position the tool confidently in restricted spaces. Its compact geometry makes it easier to reach into narrow zones while maintaining a secure grip during controlled pulling operations.
With a 50 mm jaw width, 4-ton pull rating, and high-grade forged steel construction, the Pull Plier 144 is a practical, durable solution for technicians performing smaller panel pulls, side sill work, and tight-space repairs where accuracy and access are critical.
Technical Specifications
Fully Serviceable Design: All components shown in the exploded assembly diagram are available individually for service and replacement.

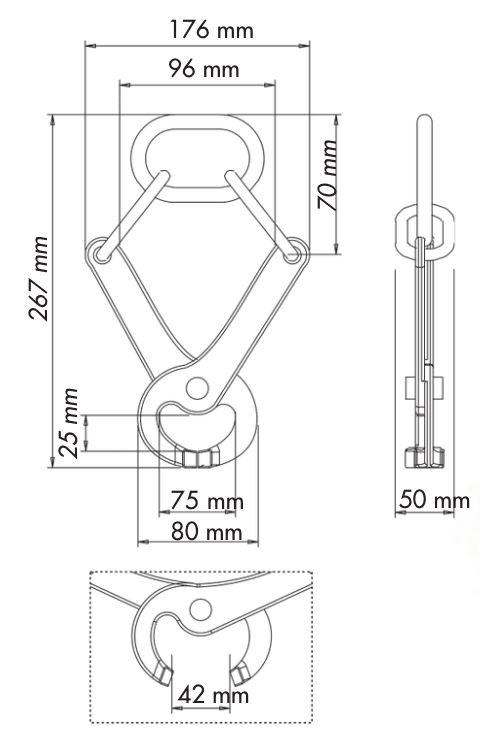

| Dimensional Drawing Dimensional reference for the Pull Plier 144 assembly.
|
Exploded Assembly & Spare Parts
 Diagram shown for reference. Positions correspond to the parts list.
|
Parts Support & Replacement OrderingUse the exploded diagram and replacement parts collection above to identify service components for the Pull Plier 144. Need assistance identifying a component? Contact CRTE Technical Support prior to ordering. |
Why Low-Profile Pulling Tools Matter in Tight Repairs
In collision repair, some of the most frustrating pulls happen in the tightest areas. Side sills, inner wheel houses, and narrow structural zones often limit access, making it harder to position larger pulling tools without sacrificing control.
A low-profile pull clamp helps technicians reach these confined areas more effectively while still maintaining a secure bite under tension. When the tool fits the repair zone properly, setup becomes faster and the pull becomes more controlled.
The Stanzani Pull Plier 144 is engineered for exactly that balance, combining a compact profile, 4-ton pulling capacity, and forged steel durability into a precise, shop-ready pulling solution for restricted-access repairs.
For shops that need a dependable pulling solution for smaller panels and tight structural locations, the Pull Plier 144 is a smart, durable tool that delivers strength without unnecessary bulk.
