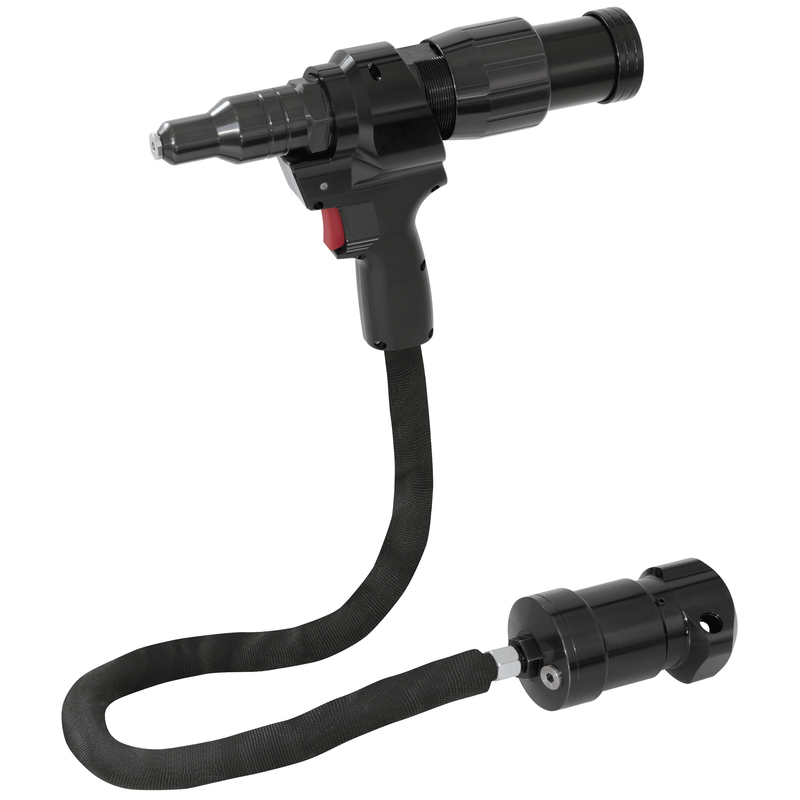

GYS 064867 Blind Rivet Adapter, 50 kN | Fits GYS GYSPRESS 8T and 10T, PUSH-PULL 8T and 10T Riveters
The GYS 50 kN Blind Rivet Adapter sets blind rivets, blind rivet nuts and blind rivet bolts with GYSPRESS riveting machines — 50 kN on a 10T, 40 kN on an 8T, handling steel blind rivets up to Ø9.8 mm. Lightweight, space-saving and built on a robust steel structure with an adjustable 0–25 mm pulling stroke. Sold and supported by Innovative Solutions CRTE.
Choose Quantity
GYS · Riveting · Ref. 064867 GYS 50 kN Blind Rivet AdapterOne adapter, three fastener types, 50 kN The 50 kN blind rivet adapter sets blind rivets, blind rivet nuts and threaded studs with GYSPRESS riveting machines. It develops 50 kN of pressure on a GYSPRESS 10T and 40 kN on a GYSPRESS 8T — enough to set steel blind rivets up to Ø9.8 mm. Lightweight, space-saving and built on a robust steel structure.
|
| M5–M14Blind rivet nuts | M5–M8Blind rivet bolts | 0–25 mmAdjustable pulling stroke | 4.7 kgTool weight (10.4 lb) |
Why shops buy it
Efficient in every situation
| ✓ | Sets blind rivets, blind rivet nuts and blind rivet bolts with one adapter. |
| ✓ | Powerful enough to set steel blind rivets up to Ø9.8 mm. |
| ✓ | Adjustable pulling stroke (0–25 mm) for setting blind rivet nuts. |
| ✓ | Lightweight and space-saving — easy to handle for a full shift of riveting. |
| ✓ | Robust steel structure built for daily shop use. |
| ✓ | Works across four GYS machines: GYSPRESS 8T & 10T and PUSH-PULL 8T & 10T. |
In the box
Ready to fasten out of the box
| ✓ | 50 kN blind rivet adapter, GYS Ref. 064867. |
| ✓ | Accessories for structural blind rivets up to Ø6.4 mm (steel Ø4.0–6.4 mm, aluminium Ø4.0–7.8 mm). |
| ✓ | Accessories for blind rivet nuts M5–M14 (steel). |
Optional: kit rivets Ø8.0/9.8 mm (Ref. 058446), set of 6 tie rods with blind rivet nuts M5–M8, 160 mm extension, and consumable boxes for blind rivet nuts/bolts M5–M14 — ask CRTE for current availability.
Specifications
Full spec sheet
| Performance | |
|---|---|
| Max. pressure (GYSPRESS 10T) | 50 kN at 7 bar |
| Max. pressure (GYSPRESS 8T) | 40 kN at 8 bar |
| Blind rivets | Ø4.0 to Ø9.8 mm |
| Blind rivet nuts | M5 to M14 |
| Blind rivet bolts | M5 to M8 |
| Pulling stroke | Adjustable, 0–25 mm |
| Dimensions & weight | |
| Dimensions | 1300 x 300 x 70 mm / 51.2 x 11.8 x 2.8 in |
| Weight | 4.7 kg / 10.4 lb |
| Structure | Steel |
| Compliance | |
| Standards | EN 693:2001+A2:2011 · EN 792-13:2000+A1:2008 · EN ISO 11148-1:2011 |
| Identification | |
| GYS Ref. | 064867 |
| EAN | 3154020064867 |
| Sold & supported by | Innovative Solutions CRTE, Pompton Plains NJ |
| Figures from the GYS datasheet (planet.gys.fr, UK edition, 04/12/2020). Specifications can change without notice — confirm with CRTE before ordering for a specific OEM programme. | |
Works with
Fits four GYS riveting machines
This adapter is compatible with the GYSPRESS 8T, GYSPRESS 10T, PUSH-PULL 8T and PUSH-PULL 10T riveting machines. Browse the full GYS equipment line at CRTE.
Documents & pricing Datasheet, manual, and a real quoteGYS equipment is sold through CRTE with installation, training and warranty support from our New Jersey shop. Request PricingDatasheet (PDF)User Manual (PDF) |
