u-PHS-101-101926 - Pro Spot Refurbished - Ready for a new home!
Choose Quantity

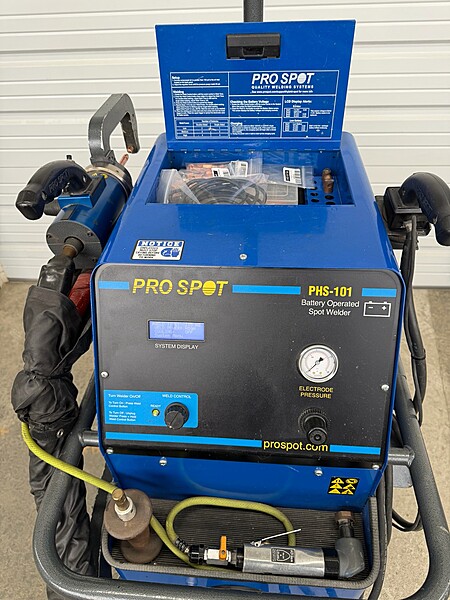

Used Hybrid Battery Spot Welder – Fully Reconditioned & Production Ready
This fully reconditioned hybrid battery-powered spot welder has been carefully gone through by our team to ensure it is ready for immediate use in a production environment. Designed for shops that may not have access to 220V or 3-phase power, this unit delivers strong, consistent welds using its onboard battery system while maintaining the flexibility and capability required for modern collision repair.
- (4) Brand New Batteries Installed – Extremely low usage, delivering strong weld output
- Replaced (2) Internal Battery Chargers to ensure proper charging performance
- Installed New Wheelhouse Electrode for improved access and consistency
- New Electrode Shanks Installed
- New Electrode Caps Included (Male & Female Sets for C-X Adapter and Main Arms)
- Internal Cleaning Performed – Unit fully cleaned inside
- Contactor Surfaces Cleaned with Emery Paper to restore optimal electrical contact
Why This Unit Stands Out
One of the biggest concerns with hybrid/battery welders is internal wear from repeated contactor cycling during welds. We addressed this directly by cleaning and restoring the internal contact surfaces, resulting in improved conductivity and more consistent weld quality.
Combined with brand new batteries and upgraded charging components, this unit is producing strong, reliable welds and is ready for a new home.
▶ See It In Action
Watch this unit in action and see the weld performance, condition, and setup for yourself.
Click to watch the full video demonstration
📞 Want a quick demo or pricing? Contact us today — this unit won’t last.
- No 3-Phase Power Required – Runs off standard 110V charging
- Battery-Powered Flexibility – Ideal for shops with limited electrical infrastructure
- Consistent Weld Output with Current Monitoring
- Excellent for Wheelhouse & Hard-to-Reach Areas
- Supports Multiple Welding Functions (spot, dent pull, shrinking, etc.)
Applications
- Spot Welding (Structural & Non-Structural)
- Single-Sided Welding
- Dent Pulling & Washer Welding
- Contact Shrinking
- Nut & Bolt Welding
- Molding Clip Rivet Welding
OEM Compatibility
This platform is widely recognized across the industry and approved or utilized across multiple OEM repair environments including Ford, Toyota, Honda, Chrysler, Hyundai, Nissan, Subaru, and more.
Technical Specifications
| Specification | Details |
|---|---|
| Input Voltage | 110V / 220V Single Phase (Auto Sensing) |
| Duty Cycle | 80+ Welds per Charge |
| Max Welding Amperage | 10,500A |
| Cable Length | 8 ft (2.5m) |
| Electrode Pressure | Up to 720 lbs |
| Cooling System | Fan + Compressed Air Cooling |
| Dimensions | 33” x 23” x 43” |
| Weight | ~275 lbs |
This is a fully serviced, production-ready hybrid spot welder with critical wear components addressed, upgraded internals, and new batteries — delivering performance you can rely on without the cost of new equipment.
