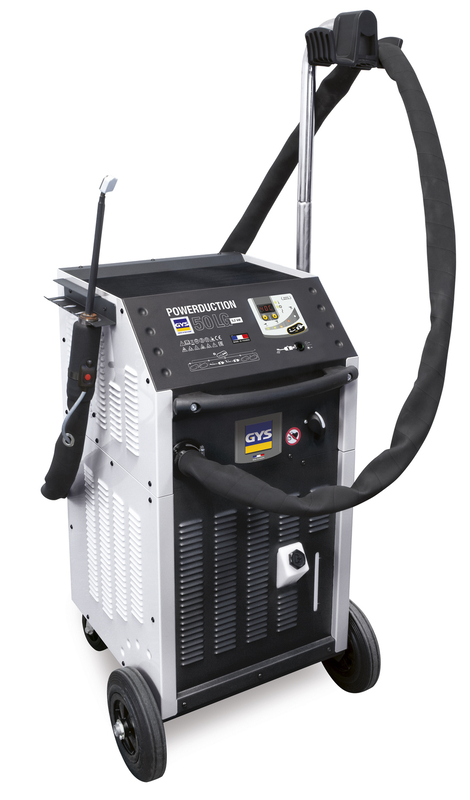

GYS 055599 POWERDUCTION 50LG (C20/B1) Induction Heater, 5,200 W | Liquid-Cooled, Flameless Bolt and Panel Release
The GYS POWERDUCTION 50LG is a liquid-cooled induction heater built for release and removal work in the shop — from seized steering linkages and bolts to glued-on car body panels. It delivers 5,200 W of adjustable induction power, heating steel to a depth of 6 mm and bringing it to a red-hot ≈1,000°C, flame-free, so techs can work close to heat-sensitive parts. Sold and supported by Innovative Solutions CRTE.
Choose Quantity
GYS · Induction Heating · Ref. 055599 GYS POWERDUCTION 50LG (C20/B1)5,200 W. Red-hot in seconds. No flame. A liquid-cooled induction heater that delivers instant, powerful heat to steel and aluminium without an open flame. Built for shops that need to free seized bolts, remove glued panels, or heat metal for minutes at a stretch without losing performance.
|
| 1.5 LCoolant tank | 30–50 kHzOperating frequency | 65 kg / 143 lbMachine weight | 3 m / 9.8 ftInductor cable |
Why shops buy it
Liquid-cooled power for continuous work
| ✓ | 5,200 W of induction power, adjustable in 500 W increments, heats the heart of the metal to a depth of 6 mm. |
| ✓ | Liquid cooling lets the 50LG heat parts for minutes at a time without interruption — steel can be brought up to a red-hot ≈1,000°C. |
| ✓ | Flameless, immediate heating on a specific area, so techs can work close to cables, pipes and other heat-sensitive parts without dismantling them. |
| ✓ | Reinforced safeguards for use with power sources, protected against permanent overvoltage up to 400V (factory tested). |
| ✓ | PFC (Power Factor Correction) regulates and uses the power supply more efficiently. |
| ✓ | 3 m / 9.8 ft inductor cable makes it comfortable to work at height or around the vehicle. |
Features
Built for mechanical and body work
| 1 Mechanical release Frees seized steering linkages, ball joints, shaft drives, glow plugs, wipers and spare-wheel carriers without damage. | 2 Exhaust & fastener removal Removes rusted automotive or HGV exhaust lines and releases seized-up bolts in seconds. | 3 Car body work Removes glued-on steel or aluminium panels and helps straighten bent chassis sections (non-HSS). |
| 4 Supplied inductor Ships complete with a 20° inductor, P.N. 056862, ready to run out of the crate. | 5 Liquid cooling circuit 1.5 L onboard coolant tank; 2 L coolant top-up (P.N. 082212) is essential for optimum performance, 5 L option (P.N. 062511). | 6 Comfortable reach Three-metre inductor cable for working at height without repositioning the machine. |
Specifications
Full spec sheet
| Performance | |
|---|---|
| Power output | 5,200 W, adjustable in 500 W increments |
| Heating depth | 6 mm into the metal |
| Max steel temperature | ≈1,000°C (red-hot) |
| Operating frequency | 30–50 kHz |
| Power | |
| Supply | Single-phase · 230 V on the GYS datasheet (EU edition) — confirm US supply voltage with CRTE before ordering |
| Current draw | ≥25 A |
| Overvoltage protection | Up to 400V, factory tested |
| Efficiency | PFC — Power Factor Correction |
| Cooling | |
| Coolant reservoir | 1.5 L onboard tank |
| Cooling circuit capacity | 7 L |
| Coolant refill kits | 2 L (P.N. 082212) essential · 5 L (P.N. 062511) optional |
| Dimensions & weight | |
| Machine dimensions | 85 x 58 x 50 cm / 33.5 x 22.8 x 19.7 in |
| Machine weight | 65 kg / 143 lb |
| Mains cable | 8 m / 26.2 ft |
| Inductor cable | 3 m / 9.8 ft |
| Identification | |
| GYS Ref. | 055599 |
| EAN | 3154020055599 |
| Supplied inductor | Complete 20° inductor, P.N. 056862 |
| Made in | France |
| Sold & supported by | Innovative Solutions CRTE, Pompton Plains NJ |
| Figures from the GYS datasheet (planet.gys.fr, UK edition, 20/03/2024). Specifications can change without notice — confirm with CRTE before ordering for a specific OEM programme. | |
Works with
Part of the POWERDUCTION liquid-cooled range
The 50LG shares its liquid-cooled platform and inductor mounting with the rest of the POWERDUCTION family. Browse the full GYS equipment line at CRTE for additional inductors and accessories.
Documents & pricing Datasheet, manual, and a real quoteGYS equipment is sold through CRTE with installation, training and warranty support from our New Jersey shop. Request PricingDatasheet (PDF)User Manual (PDF) |
