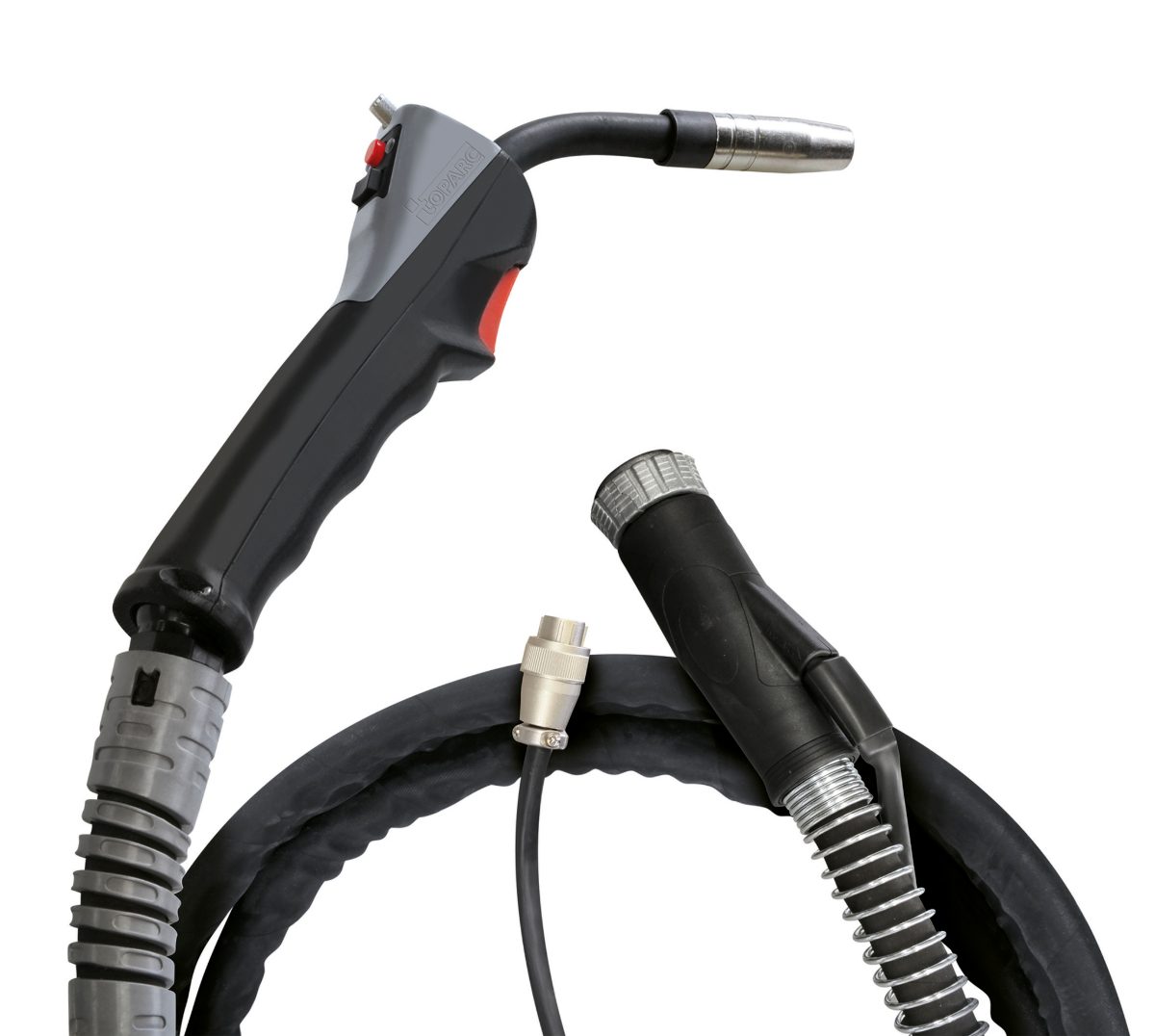

GYS 046283 MB25 Push-Pull MIG Torch, 220 A, 4 m, 0.6-1.2 mm Wire | For GYS NEOPULSE / PULSEMIG / CARPULSE
The GYS MB25 Push-Pull Torch integrates a wire-feed motor into the handle, synchronised with the generator's feeder, for extremely smooth and consistent wire speed on small-diameter or soft wire. Rated 220 A at 20% duty cycle, with SELECT + UP/DOWN handle controls and a recommended 0.6–0.8 mm range for aluminium. Sold and supported by Innovative Solutions CRTE.
Choose Quantity
GYS · Mig Welding · Ref. 046283 GYS MB25 Push-Pull TorchSmooth feed for aluminium and soft wire The MB25 Push-Pull torch has a wire-feed motor built into the handle, synchronised with the generator’s feeder, so wire speed stays extremely smooth and consistent — ideal when welding small-diameter or soft wire. SELECT and UP/DOWN buttons on the handle dial in arc height or wire speed without leaving the joint. Air-cooled and rated 220 A at 20% duty cycle for aluminium and precision MIG work.
|
| 15–220 ACurrent range | 20% / 40%Duty cycle at 220A / 160A | 0.6–1.2 mmWire diameter range | 66 mmMax width (2.6") |
Why shops buy it
Precision feed for soft and small-diameter wire
| ✓ | Wire-feed motor built into the handle, synchronised with the generator’s feeder, for extremely smooth and consistent wire speed. |
| ✓ | SELECT + UP/DOWN buttons on the handle adjust arc height (orange LED) or wire speed (green LED) without stepping away from the joint. |
| ✓ | Air-cooled but still delivers a high duty cycle: 220 A at 20%, 160 A at 40%. |
| ✓ | Handles wire Ø 0.6, 0.8, 1.0 and 1.2 mm — recommended at 0.6–0.8 mm for aluminium. |
| ✓ | Compact and light: 970 g (2.1 lb) torch, 66 mm (2.6") max width, 4 m (13.1 ft) cable. |
| ✓ | Purpose-built to pair with GYS NEOPULSE, PULSEMIG, AUTOPULSE and CARPULSE generators. |
Features
Handle controls that keep hands on the gun

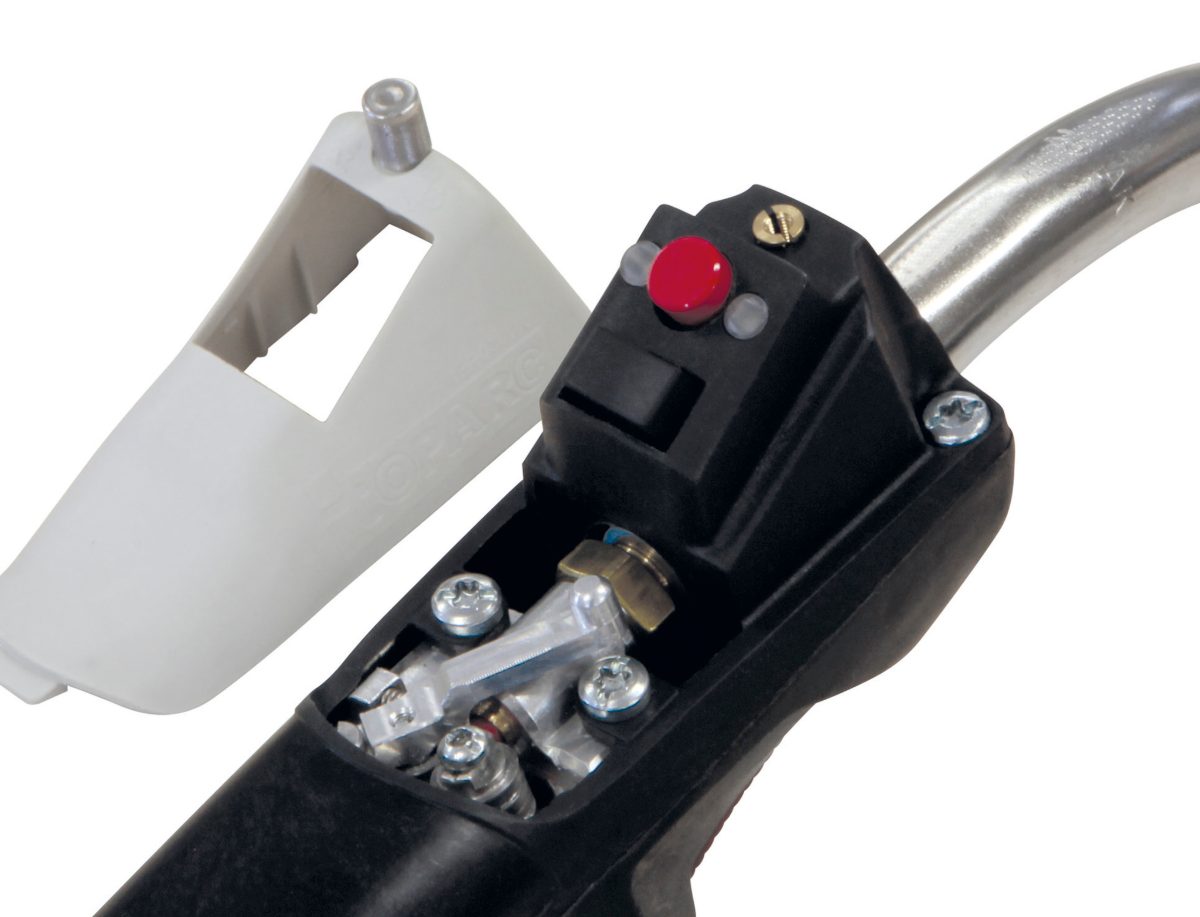

| 1 SELECT control Choose arc-height (orange LED) or wire-speed (green LED) adjustment right on the handle. | 2 Push-pull feed A motor inside the torch handle syncs with the wire feeder for consistent, jam-free delivery. | 3 Aluminium-ready Recommended 0.6–0.8 mm for soft aluminium wire, plus 0.8–1.2 mm for standard steel/alloy wire. |
In the box
Ready to weld aluminium out of the crate
| ✓ | MB25 Push-Pull torch, 4 m (13.1 ft) cable. |
| ✓ | 1.2 mm aluminium contact tube. |
| ✓ | Teflon liner for 0.8/1.2 mm wire. |
Specifications
Full spec sheet
| Performance | |
|---|---|
| Current range | 15–220 A |
| Duty cycle | 220 A at 20% · 160 A at 40% |
| Wire diameter | 0.6, 0.8, 1.0, 1.2 mm (aluminium: 0.6–0.8 mm recommended) |
| Cooling | |
| Cooling type | Air-cooled |
| Dimensions & weight | |
| Torch weight | 970 g / 2.1 lb |
| Max width | 66 mm / 2.6" |
| Cable length | 4 m / 13.1 ft |
| Identification | |
| GYS Ref. | 046283 |
| EAN | 3154020046283 |
| Sold & supported by | Innovative Solutions CRTE, Pompton Plains NJ |
| Figures from the GYS datasheet (planet.gys.fr, UK edition, 27/01/2020). Specifications can change without notice — confirm with CRTE before ordering for a specific OEM programme. | |
Works with
Built for GYS pulse-MIG generators
The MB25 is designed to work with the GYS NEOPULSE 220C / 220C XL, PULSEMIG 220C / 220C XL, AUTOPULSE 220 M3 / 320 T3 and CARPULSE 220 M3 / 320 T3 generators. Browse the full GYS equipment line at CRTE.
Documents & pricing Datasheet, manual, and a real quoteGYS equipment is sold through CRTE with installation, training and warranty support from our New Jersey shop. Request PricingDatasheet (PDF)User Manual (PDF) |
