TEXA Axone VOICE Plus OHW with Multihub 2
TEXA's flagship off-highway diagnostic kit: the AXONE VOICE 13.3" hands-free tablet (Intel Core i5, 16GB RAM, 512GB SSD, voice control and face-recognition login) paired with a Navigator TXT Multihub 2 vehicle interface and an OBD-Deutsch 9-pin adapter for Cummins, Allison, John Deere, CNH, JCB, Argo and American Truck equipment. Includes a rugged case and a first-year IDC6 OHW (Ag + Construction) Premium licence with TEXPACK OHW subscription, activated by CRTE. Sold and supported by Innovative Solutions CRTE.
Choose Quantity

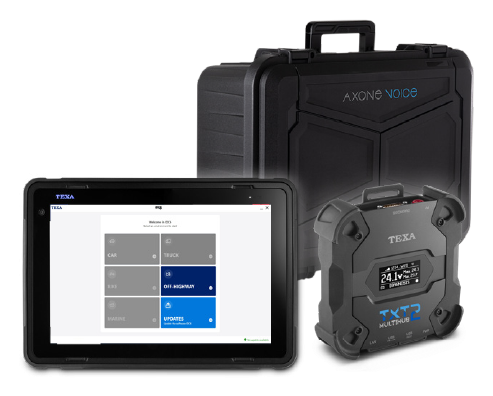

TEXA · AXONE Off-Highway Bundles · Part No. VOHW TEXA Axone VOICE Plus OHW with Multihub 2Hands-free diagnostics for ag and construction equipment. This bundle pairs TEXA's flagship AXONE VOICE tablet with a Navigator TXT Multihub 2 vehicle interface, an OBD-Deutsch 9-pin "Type II" adapter, a rugged carrying case, and a first-year IDC6 OHW (Ag + Construction) Premium licence with TEXPACK OHW subscription — a ready-to-use off-highway diagnostic station, set up and activated by CRTE.
|
| 90 Wh12,500 mAh tablet battery | Core i516 GB RAM · 512 GB SSD | IP53Multihub 2 rating | 600 gMultihub 2 weight |
Why shops buy it
A flagship tablet, purpose-built for ag and construction bays
| ✓ | Hands-free "Hey TEXA" voice control and face-recognition login on the AXONE VOICE tablet. |
| ✓ | Includes an OBD-Deutsch 9-pin "Type II" adapter for Cummins, Allison, John Deere, CNH Group, JCB, Argo Group and American Truck equipment. |
| ✓ | Navigator TXT Multihub 2 operates across 5 environments, including agricultural & construction equipment, with SAE J2534 Pass-Thru programming. |
| ✓ | 13.3" Gorilla Glass display in a magnesium body rated MIL-STD 810G, with Intel Core i5, 16 GB RAM and a 512 GB SSD. |
| ✓ | First-year IDC6 OHW (Ag + Construction) Premium licence and TEXPACK OHW subscription included — CRTE activates both. |
| ✓ | Rugged carrying case for the tablet and Multihub 2, plus built-in GNSS on the tablet. |
Features
Two devices, one off-highway diagnostic station
| 1 AXONE VOICE tablet 13.3" Gorilla Glass touchscreen, hands-free voice control, face-recognition login, and two 8MP cameras. | 2 Navigator TXT Multihub 2 Standalone VCI with a 2.42" OLED display, IP53 rating, and CAN-FD/DoIP/Pass-Thru protocol support. | 3 Off-highway ready OBD-Deutsch 9-pin adapter, first-year IDC6 OHW Premium licence and TEXPACK OHW subscription, all activated by CRTE. |
In the box
What ships with this kit
| ✓ | [D171X1] TEXA AXONE Voice Tablet — 1 box |
| ✓ | [D195A0] NAVIGATOR TXT Multihub 2 — 1 ea |
| ✓ | [3905786] OBD-DEUTSCH 9-PIN "Type II" adapter for CUMMINS, ALLISON, JOHN DEERE, CNH GROUP, JCB, ARGO GROUP and AMERICAN TRUCK — 1 |
| ✓ | [3911964] TEXA rugged case for Multihub and Axone tablet — 1 ea |
| ✓ | [P240C0] IDC6 OHW (AG + CONSTRUCTION) PREMIUM 1 Year Subscription for AXONE Plus / Voice — 1 ea |
| ✓ | [AGA00AG] TEXPACK OHW 1 Year Subscription — 1 ea |
Specifications
Full spec sheet
| AXONE VOICE Tablet | |
|---|---|
| Display | 13.3", 2560 × 1600, Gorilla Glass, up to 10 touch points |
| Compute | Intel Core i5, 16 GB RAM, 512 GB SSD, Windows 11 Enterprise |
| Connectivity | Bluetooth 5.1, dual-band Wi-Fi 802.11ac, 4x USB 3.0, built-in GNSS |
| Battery | Li-ion 7.2V, 90 Wh (12,500 mAh); TEXA states 10 hours in standard use |
| Build | Magnesium body, MIL-STD 810G (Transit Drop Test); face-recognition login, two 8MP cameras |
| Navigator TXT Multihub 2 | |
| Display | 2.42" white-backlit OLED (64 × 128 dot) |
| Power | 12–24 Vdc (1A @12V or 0.5A @24V) |
| Connectivity | Wi-Fi 802.11 b/g/n, Ethernet (ISO 13400 DoIP), Bluetooth, USB 2.0 |
| Protocols | CAN, CAN-FD (4 channels), DoIP (ISO 13400-3), SAE J2534-1/2 Pass-Thru, K-L, ISO9141-2, ISO14230, SAE J1850, SAE J1708, blink codes |
| Build | IP53 certified, MIL-STD 810G drop-tested, 600 g |
| Identification | |
| TEXA Part No. | VOHW |
| Sold & supported by | Innovative Solutions CRTE, Pompton Plains NJ |
| Figures from texa.com (AXONE VOICE and NAVIGATOR TXT MULTIHUB 2 product pages) and the CRTE product record. Specifications can change without notice — confirm with CRTE before ordering for a specific shop or fleet configuration. | |
Works with
The TEXA IDC5 off-highway environment, and more
This kit runs TEXA IDC5 off-highway (ag + construction) environment software (TEXA's current release is IDC6; CRTE activates the current version). Browse Off-Highway software and Off-Highway cables, or see the full TEXA lineup at CRTE, including the Axone Nemo Light Car with Nano S 2 bundle and the AXONE VOICE Car & Supercar with Multihub 2 bundle.
Documents & pricing A real quote, and the IDC6 brochureTEXA equipment is sold through CRTE with setup, activation and support from our New Jersey shop. Request PricingTEXA IDC6 brochure (PDF) |
