u-i4s-2125 | Pro Spot Refurbished i4s Spot Welder | Reconditioned

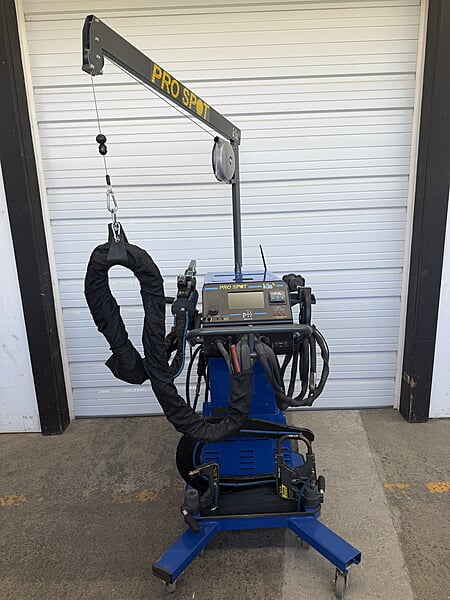

A reconditioned pre-owned Pro Spot i4s smart inverter resistance spot welder — WiFi-connected with adaptive auto-welding, an on-gun display, and the high-pressure gun standard, built for boron and advanced high-strength steels. Traded in in working order, then inspected, serviced, and weld-tested by CRTE technicians. Full standard equipment set, fresh consumables throughout, plus the optional C-to-X adapter. 208/240V three-phase. One available — photos show the actual unit.
Choose Quantity
Reconditioned Pre-Owned Pro Spot i4s Smart Spot Welder — i4s-2125
This Pro Spot i4s (serial i4s-2125) came to us as a trade-in in working order and has been through our full reconditioning process — inspected, serviced, cleaned, and weld-tested by CRTE technicians before listing. We don't distribute the i4s new; we take them in on trade, recondition them, and stand behind them.
The i4s is Pro Spot's smart inverter resistance spot welder — the i4 platform taken digital. Its adaptive auto-weld mode reads the material in real time, monitoring and adjusting weld energy thousands of times per second against thickness, composition, and resistance, so a tech gets a consistent weld on boron and advanced high-strength steels without babysitting parameters. The gun itself carries a display — live weld feedback and fingertip controls right at the workpiece — and the high-pressure gun is standard equipment on this model. Arms are water-cooled through full 360-degree rotation.
It's also a connected machine: WiFi software updates, onboard training videos and repair-procedure content, weld-log export by email, and work-order assignment per technician — the documentation features DRP and OEM-certified shops increasingly want on paper. Single-sided work runs from a library of 60+ preset programs covering stitch welding, nail welding, carbon shrinking, and dent pulling. As a used buy it carries the same virtues as the i4 — simple consumables, arms that hold their value — with the paper trail built in.
What's Included with This Unit
The full i4s standard equipment set, inventoried against the manufacturer's current component list and tested:
- PS-700W liquid-cooled high-pressure spot welding gun with on-gun display
- Overhead boom with tool balancer (8–10 kg) and cable support
- Single-sided gun assembly for the preset program library
- Arm set: 80 mm C-arm, 90 mm wheelhouse arm, 320 mm and 520 mm extension arms
- Full electrode, cap, and consumable-fastener kit — A- and F-caps, shanks, carbon and stitch electrodes, weld washers, weld-on bolts, nuts, rivets and nails, stud & washer adapters
- Spot hammer with weight, handles, trigger switch, welder cover, O-ring packs and tool kit
Key Features
- Adaptive auto-weld mode — monitors and adjusts weld energy thousands of times per second based on material thickness, composition, and resistance
- Inverter resistance spot welding rated to 12,500 A DC on three-phase power
- On-gun display with live weld feedback and fingertip parameter controls
- High-pressure gun standard — industry-leading squeeze force class
- Full 360-degree arm rotation with water cooling maintained through rotation
- WiFi-connected: software updates, remote troubleshooting, weld-log export by email
- Onboard training videos and repair-procedure content — techs trainable in under an hour
- Single-sided welding with 60+ preset programs (stitch, nail, carbon shrink, dent pulling)
- Work-order assignment per technician for repair documentation
- Quick-connect arm docking system
Pro Spot's published OEM approvals sheet for the i4s lists GM, GMC, Cadillac, Chrysler, Fiat, Jeep, Tesla, and Rivian — republished from the manufacturer's materials as-is; see the disclaimer below.
Specifications
| Condition | Pre-owned · reconditioned & weld-tested by CRTE |
| Serial | i4s-2125 |
| Spot gun | PS-700W high-pressure, liquid-cooled, on-gun display (standard on the i4s) |
| Electrode force* | 1,240 lbs (565 daN) |
| Max welding current* | 12,500 A DC (three-phase) |
| Input voltage | 208–240V three-phase — verified on this unit's data plate |
| Cooling* | Radiator/pump active loop, cooled to the electrode caps |
| Cables* | 30 ft (10 m) power · 8.75 ft (2.67 m) weld cable |
| Protection rating* | IP 21 |
| Weight* | approx. 385 lbs (175 kg) |
| Crated dimensions* | approx. 48 × 40 × 60 in |
| Brand | Pro Spot |
| SKU | CRTE-u-i4s-2125 |
We can ship anywhere on the planet — call today for a quote! 973-768-9812
Pro Spot and i4s are trademarks of Pro Spot International, Inc. Innovative Solutions CRTE is an independent reseller and is not affiliated with, authorized by, or endorsed by Pro Spot International. This unit is pre-owned and was inspected, tested and reconditioned by Innovative Solutions CRTE. All model specifications, ratings, and capability figures shown are taken directly from the manufacturer's own published documentation and are republished here as-is; Innovative Solutions CRTE has not independently tested these figures and makes no claim as to their accuracy or validity. Any automaker (OEM) program, approval, or requirement referenced likewise reflects the manufacturer's published materials — not a representation by CRTE — applies to the equipment model as manufactured and supported by Pro Spot, and no shop certification transfers to the buyer with the machine. Buyers should confirm current specifications and OEM requirements directly with the manufacturer and the automaker.
