OPEN BOX | 1D0040 | CH-SPR-5 - Self Piercing Riveting Gun System with Die Kit

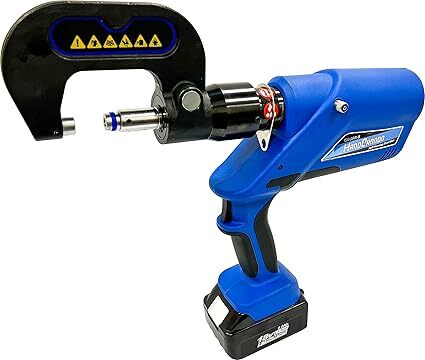

The Hand Cannon CH-SPR-5 Self-Piercing Riveting Gun System is a professional electric riveting solution designed for modern collision repair. Powered by an 18V rechargeable lithium battery, it provides 25–55 kN of adjustable force with ±3% accuracy, allowing precise pressure control for every repair. Its fast-cycle performance (5–8 seconds per rivet), quick arm change, and quiet operation make it both shop-friendly and technician-ready.

Built to meet OEM specifications, the CH-SPR-5 supports a wide range of applications, including self-piercing rivets, solid rivets, rivet removal, flow form rivets, and calibrating punch operations. Post-style dies ensure longevity and ease of use, while the ergonomic trigger and pressure adjustment knob simplify operation.

The system ships complete with the SPR-40 arm, die kit with toolbox, 18V battery and charger, strap, and carrying case, with optional arms (SPR-130 and SPR-220) available for different metals and access needs. With a cycle capacity of up to 350 rivets per charge, the CH-SPR-5 gives repair shops the speed, power, and reliability required for OEM-approved structural repairs

Key Points

• Adjustable Force: 25–55 kN with ±3% precision for OEM-level repairs2025 - 08 CRTE Hand Cannon SRP-…

• Fast Work Cycles: 5–8 seconds per rivet for maximum efficiency

• Multiple Applications: Handles SPR, solid rivets, rivet removal, flow form rivets, calibrating punch, and pin & collar operations

• OEM Compliance: Designed to meet or exceed individual OEM specifications

• Quick Arm Change: Includes SPR-40 arm, with optional SPR-130 and SPR-220 arms available for extended reach

• Complete Kit: Comes with die kit, toolbox, 18V rechargeable lithium battery, charger, strap, and carrying case

• Long Battery Life: Delivers 130–350 rivets per charge, depending on pressure setting

• Quiet & Ergonomic: 75 dB operation with easy trigger control, pressure adjustment knob, and fast-lock plug for arms/dies

• Durable Dies: Post-style design for longevity and ease of use

• Portable Power: Compact system with 1-hour fast charging, ready for shop or mobile use
